Need Powermate 60 Gallon Air Compressor Parts? View the complete Powermate ML7006016, XL5006016 parts list and the matching Powermate ML7006016, XL5006016 parts diagram below. These references show the available Powermate ML7006016, L6506016 and XL5006016 Parts and help you identify the correct replacement parts for your air compressor.

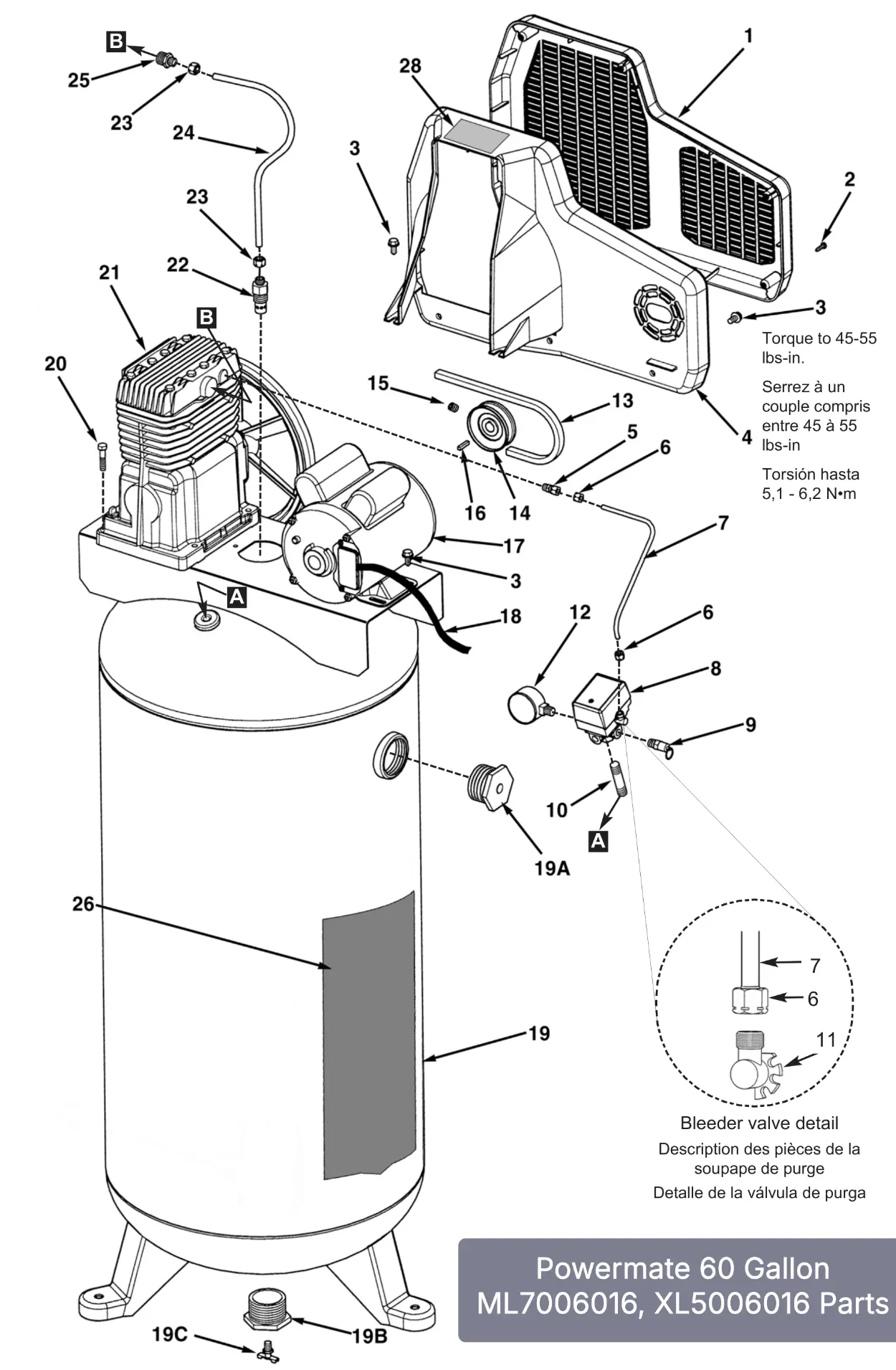

Use the exploded view to match reference numbers with the parts list. Comparing these references helps you find the correct part number for the replacement parts you need.
The illustration shows how the main components fit together within the air compressor. Use the diagram to locate individual components before selecting a replacement part.
Check the model number on your air compressor before choosing Powermate ML7006016, L6506016 and XL5006016 Parts. Verifying the model helps ensure you select the correct replacement parts.
Powermate 60 Gallon Air Compressor (ML7006016, XL5006016, L6506016) Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Belt guard (outer) | 125-0151 | 1 |
| 2 | Plastite screw | 061-0114 | 5 |
| 3 | Bolt, 5/16-18 x 1/2 | N/A | 9 |
| 4 | Belt guard (inner) | 125-0152 | 1 |
| 5 | Connector | 068-0002 | 1 |
| 6 | Nut, 1/4” O.D. tube | 058-0017 | 2 |
| 7 | Bleeder tube | 145-0084 | 1 |
| 8 | Switch, pressure | 034-0138 | 1 |
| 9 | Valve, ASME | 136-0067 | 1 |
| 10 | Nipple, 1/4 x 2-1/2 | N/A | |
| 11 | Valve, bleeder | 136-0064 | 1 |
| 12 | Gauge | 032-0025 | 1 |
| 13 | V-belt | 007-0037 | 1 |
| 14 | Pulley, 5hp models | 006-0018 | 1 |
| or | Pulley, 6 & 6.5hp models | 006-0108 | 1 |
| or | Pulley, 7hp models | 006-0142 | 1 |
| 15 | Setscrew | 061-0009 | 1 |
| 16 | Key | 146-0016 | 1 |
| 17 | Motor | 160-0266 | 1 |
| Capacitor, start, black | 166-0055 | 1 | |
| Capacitor, run, silver | 166-0018 | 1 | |
| Cover, start capacitor | 166-0029 | 1 | |
| Cover, run capacitor | 166-0028 | 1 | |
| 18 | Cord, interconnect | 026-0188 | 1 |
| 19 | Tank assembly (60 gallon) | 021-0201 | 1 |
| 19A | Bushing 2” NPSM x 3/8” NPT | 512-0042 | 1 |
| 19B | Bushing 2” NPSM x 1/4” NPT | 512-0041 | 1 |
| O-ring 2” | 513-0001 | 1 | |
| 19C | Petcock | 072-0001 | 1 |
| 20 | Bolt, 5/16″-18 x 1-1/4″ | N/A | 4 |
| 21 | Pump assembly, 165 (tor replacement parts see below) | 040-0311 | 1 |
| 22 | Check valve | 031-0066 | 1 |
| 23 | Compression nut | 058-0007 | 2 |
| 24 | Transfer tube | 145-0313 | 1 |
| 25 | Connector | 068-0017 | 1 |
| 26 | Label, warning | 098-2336 | 1 |
| 28 | Label, warning | 098-2856 | 1 |

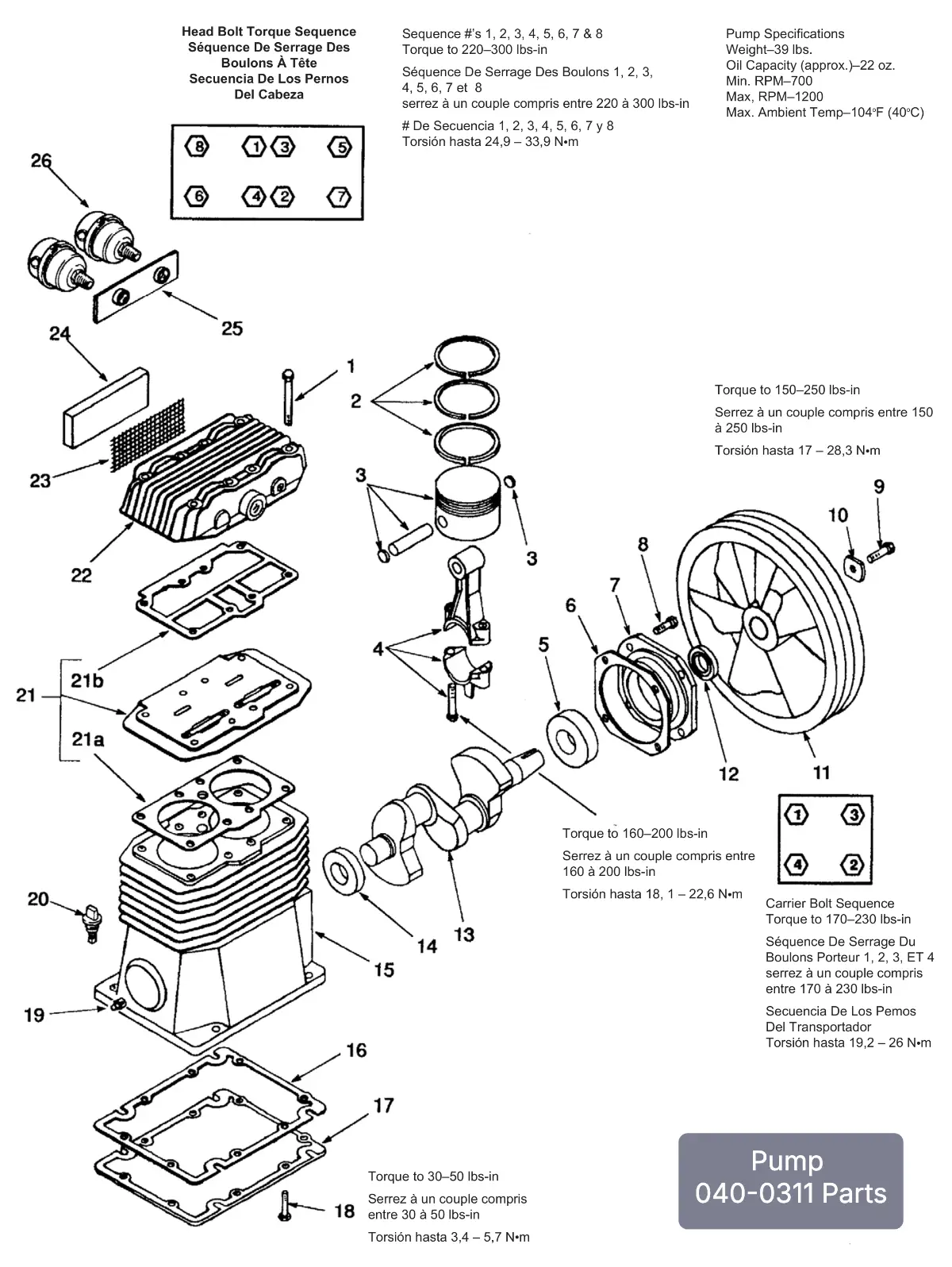

Pump 040-0311 Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Screw, 5/16–18 x 2.50” lg | ** 059-0144 | 8 |
| 2 | Ring set | 054-0112 | 1 |
| 3 | Piston assembly | 048-0065 | 2 |
| 4 | Rod, 165 pump | 047-0092 | 2 |
| 5 | Bearing | 051-0043 | 1 |
| 6 | Gasket | 046-0149 | 1 |
| 7 | Carrier, bearing assembly (includes items 5 & 12) | 045-0053 | 1 |
| 8 | Screw, 5/16-18 x .87” lg | N/A | 4 |
| 9 | Screw, 5/16-18 x 1.0” lg | N/A | 1 |
| 10 | Washer | ** 060-0053 | 1 |
| 11 | Flywheel, 12” A width | ** 044-0063 | 1 |
| 12 | Seal | 046-0161 | 1 |
| 13 | Crankshaft, 165 pump | 053-0043 | 1 |
| 14 | Bearing | 051-0013 | 1 |
| 15 | Crankcase assembly | 049-0050 | 1 |
| 16 | Gasket | 046-0263 | 1 |
| 17 | Base | 077-0148 | 1 |
| 18 | Screw, #10 – 24 x 1/2” | 061-0113 | 14 |
| 19 | Plug, 5/16 – 18 | 061-0112 | 1 |
| 20 | Dipstick | 056-0019 | 1 |
| 21 | Plate, assy, includes 21a–21b | 043-0142 | 1 |
| 21a | Gasket | 046-0152 | 1 |
| 21b | Gasket | 046-0151 | 1 |
| 22 | Head | ** 042-0103 | 1 |
| 23 | Screen | ** 118-0023 | 1 |
| 24 | Filter, felt | ** 019-0052 | 1 |
| 25 | Plate | ** 019-0096 | 1 |
| 26 | Filter, canister includes 26a | ** 019-0165 | 2 |
| 26a | Element | 019-0166 | 2 |
Available Service Kits
| Part Number | Description |
|---|---|
| 046-0159 | Gaskets, complete set |
| 165-0083 | Overhaul kit felt filter model includes ring and gasket sets, valve plate assembly and filter element |
| 165-0311 | Overhaul kit canister filter model includes ring and gasket sets, and valve plate assembly |
| 040-0311 | Pump assembly (Short Block) includes items 2-21 excluding 9-10 and 11 |
