Need Powermate VPP0301104 Parts? View the complete Powermate VPP0301104 parts list and Powermate VPP0301104 parts diagram to identify the correct replacement parts for your 11 Gallon air compressor. This page lists the available Powermate VPP0301104 Parts shown in the illustrated parts catalog.

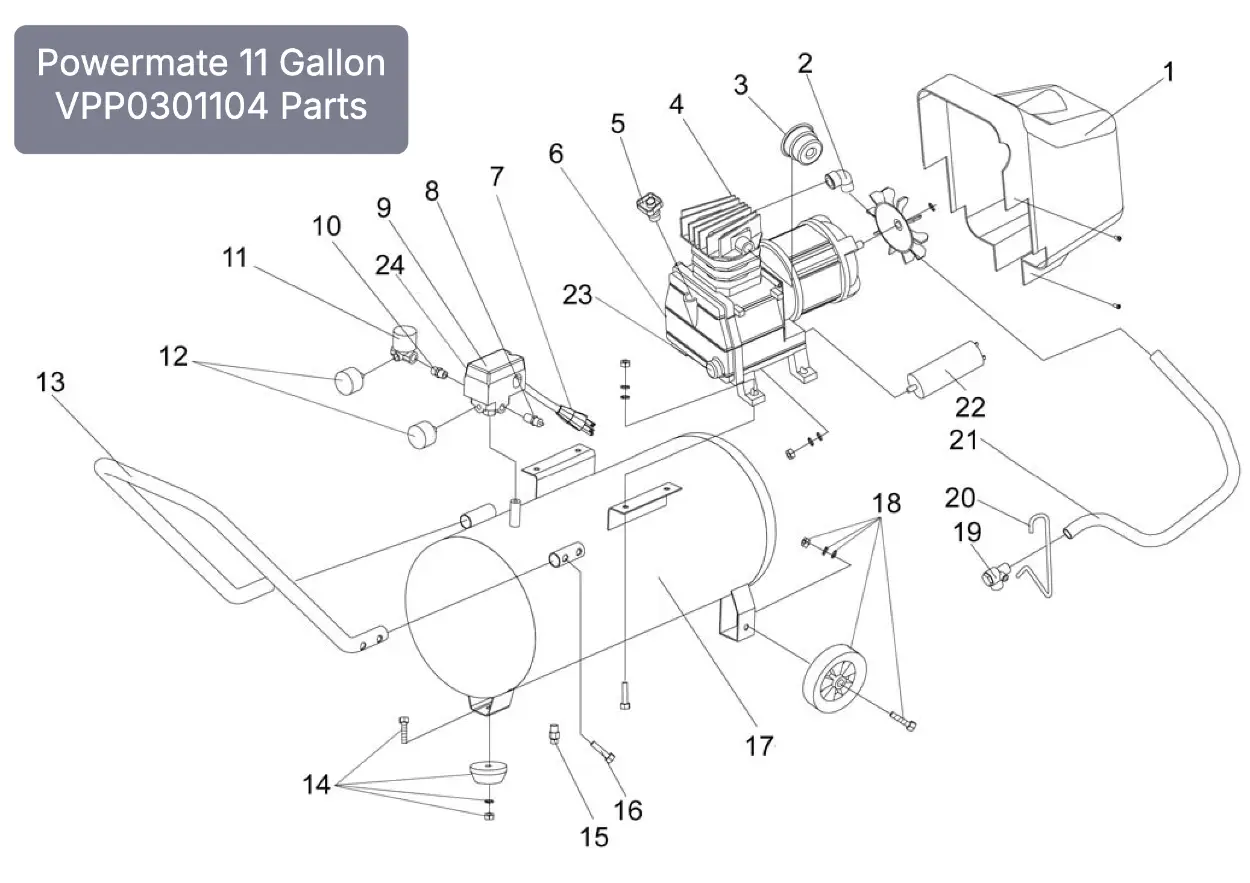

Use the exploded view to match reference numbers with the parts list. Comparing these references helps you find the correct part number for the replacement parts you need.
The illustration shows how the air compressor components fit together and where each part is located. Use the drawing to identify components before selecting a replacement part.
Always verify the model number on your air compressor before choosing Powermate VPP0301104 Parts.
Powermate VPP0301104 Model Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Shroud | 142-0147 | 1 |
| 2 | Elbow, 90° | 064-0076 | 1 |
| 3 | Intake filter | 019-0219 | 1 |
| 4 | Pump/motor assembly | 040-0362 | 1 |
| 5 | Oil fill plug | 056-0067 | 1 |
| 6 | Valve plate assembly | 043-0193 | 1 |
| 7 | Power cord | 026-0665 | 1 |
| 8 | Safety valve | 136-0056 | 1 |
| 9 | Pressure switch | 034-0170 | 1 |
| 10 | Nipple | N/A | 1 |
| 11 | Regulator | 019-0182 | 1 |
| 12 | Pressure gauge | 032-0065 | 2 |
| 13 | Handle | 112-0120 | 1 |
| 14 | Vibration pad kit | 094-0116 | 1 |
| 15 | Petcock | 072-0010 | 1 |
| 16 | Bolt | N/A | 2 |
| 17 | Tank | N/A | 1 |
| 18 | Wheel kit w/hardware | 095-0043 | 2 |
| 19 | Check valve | 031-0080 | 1 |
| 20 | Tube, bleeder | 145-0445 | 1 |
| 21 | Tube, transfer | 145-0446 | 1 |
| 22 | Capacitor | 166-0139 | 1 |
| 23 | Oil level sight glass (includes o-rings)..Verre de vue de niveau d’huile | 032-0074 | 1 |
| 24 | Valve, bleeder (not shown) | 136-0076 | 1 |
