Need Powermate VPP0200604 Parts? View the complete Powermate VPP0200604 parts list and Powermate VPP0200604 parts diagram to identify the correct replacement parts for your 6 Gallon air compressor. This page lists the available Powermate VPP0200604 Parts shown in the illustrated parts catalog.

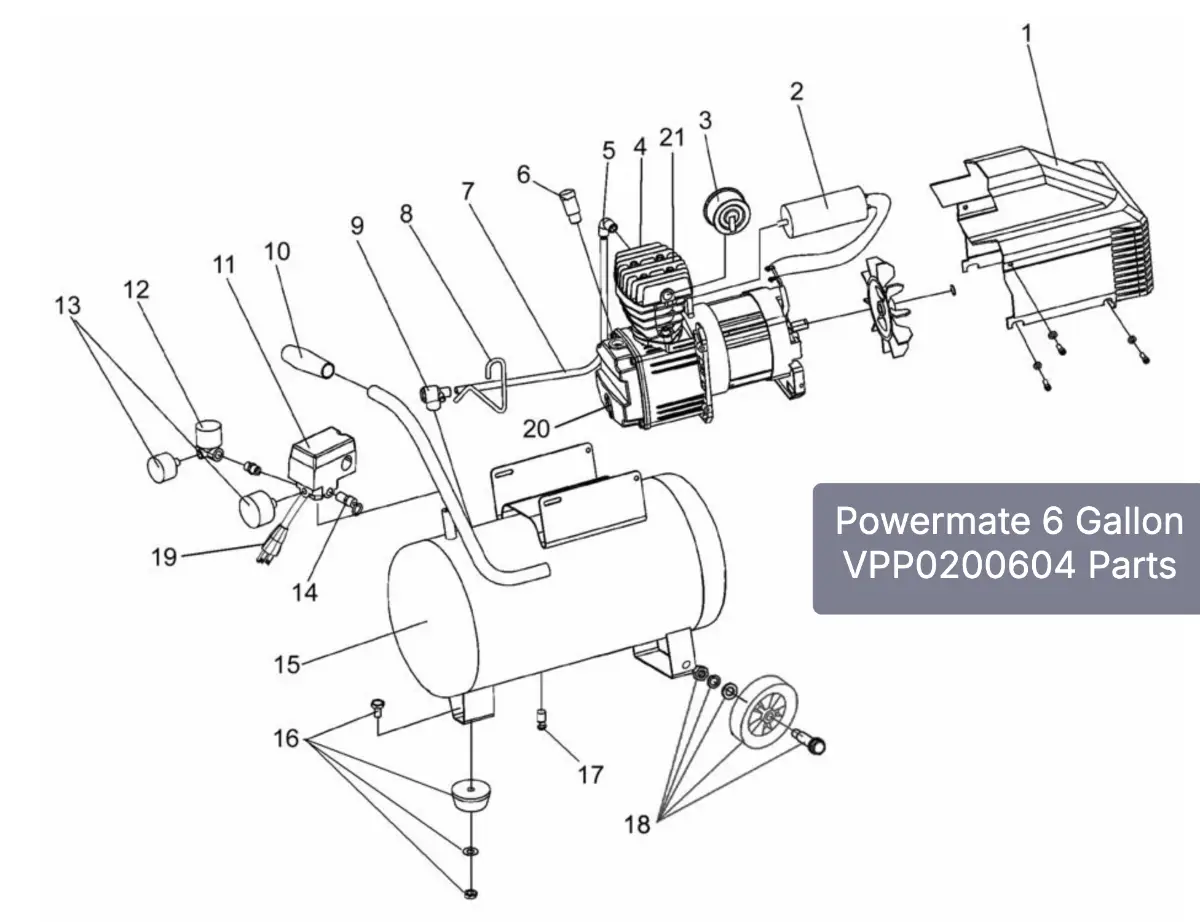

Use the exploded view to match reference numbers with the parts list. Comparing these references helps you find the correct part number for the replacement parts you need.
The illustration shows how the air compressor components fit together and where each part is located. Use the drawing to identify components before selecting a replacement part.
Always verify the model number on your air compressor before choosing Powermate VPP0200604 Parts.
Powermate VPP0200604 Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Shroud | 142-0146 | 1 |
| 2 | Capacitor | 166-0138 | 1 |
| 3 | Intake filter | 019-0218 | 1 |
| 4 | Pump/motor assembly | 040-0361 | 1 |
| 5 | Elbow, 90° | 064-0076 | 1 |
| 6 | Oil fill plug | 056-0066 | 1 |
| 7 | Tube, transfer | 145-0443 | 1 |
| 8 | Tube, bleeder | 145-0444 | 1 |
| 9 | Check valve | 031-0080 | 1 |
| 10 | Handle grip | 093-0060 | 1 |
| 11 | Pressure switch | 034-0169 | 1 |
| 12 | Regulator | 019-0182 | 1 |
| 13 | Pressure gauge | 032-0065 | 2 |
| 14 | Safety valve | 136-0056 | 1 |
| 15 | Tank | N/A | 1 |
| 16 | Vibration pad kit | 094-0116 | 1 |
| 17 | Petcock | 072-0010 | 1 |
| 18 | Wheel kit | 095-0060 | 2 |
| 19 | Power cord | 026-0664 | 1 |
| 20 | Oil level sight glass (includes o-rings)..Verre de vue de niveau d’huile | 032-0073 | 1 |
| 21 | Valve plate assembly | 043-0192 | 1 |
