Need Powermate 2 Gallon Air Compressor Parts? View the complete Powermate VPP0000201 parts list and parts diagram to identify the correct replacement parts for your 2 Gallon air compressor. This page lists the available Powermate VPP0000201 Parts shown in the illustrated parts catalog.

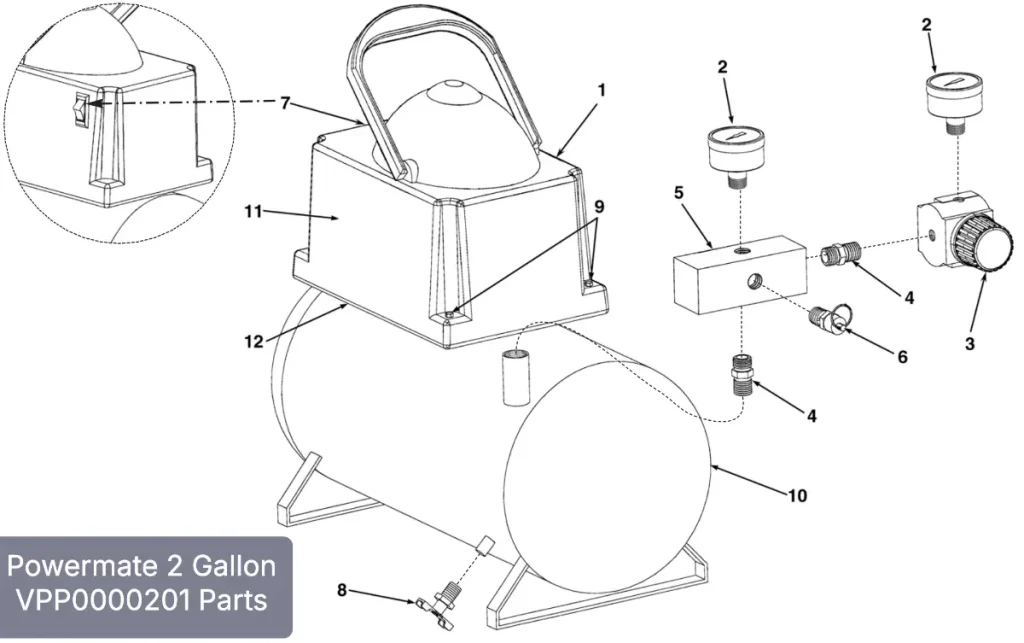

Use the exploded view to match reference numbers with the parts list. Comparing these references helps you find the correct part number for the replacement parts you need.
The illustration shows how the air compressor components fit together and where each part is located. Use the drawing to identify components before selecting a replacement part.
Always verify the model number on your air compressor before choosing Powermate VPP0000201 Parts.
Powermate VPP0000201 Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Shroud (includes handle) | 142-0140 | 1 |
| 2 | Gauge | 032-0065 | 2 |
| 3 | Regulator | 019-0196 | 1 |
| 4 | Nipple, brass | N/A | 2 |
| 5 | Manifold | 041-0048 | 1 |
| 6 | Valve, pressure relief 110 | 136-0024 | 1 |
| 7 | ON/OFF Switch | 034-0145 | 1 |
| 8 | Petcock | 072-0009 | 1 |
| 9 | Screws | N/A | 4 |
| 10 | Tank | N/A | 1 |
| 11 | Pump assembly (not shown) | 040-0345 | 1 |
| 12 | Pressure switch (not shown) | 034-0146 | 1 |
