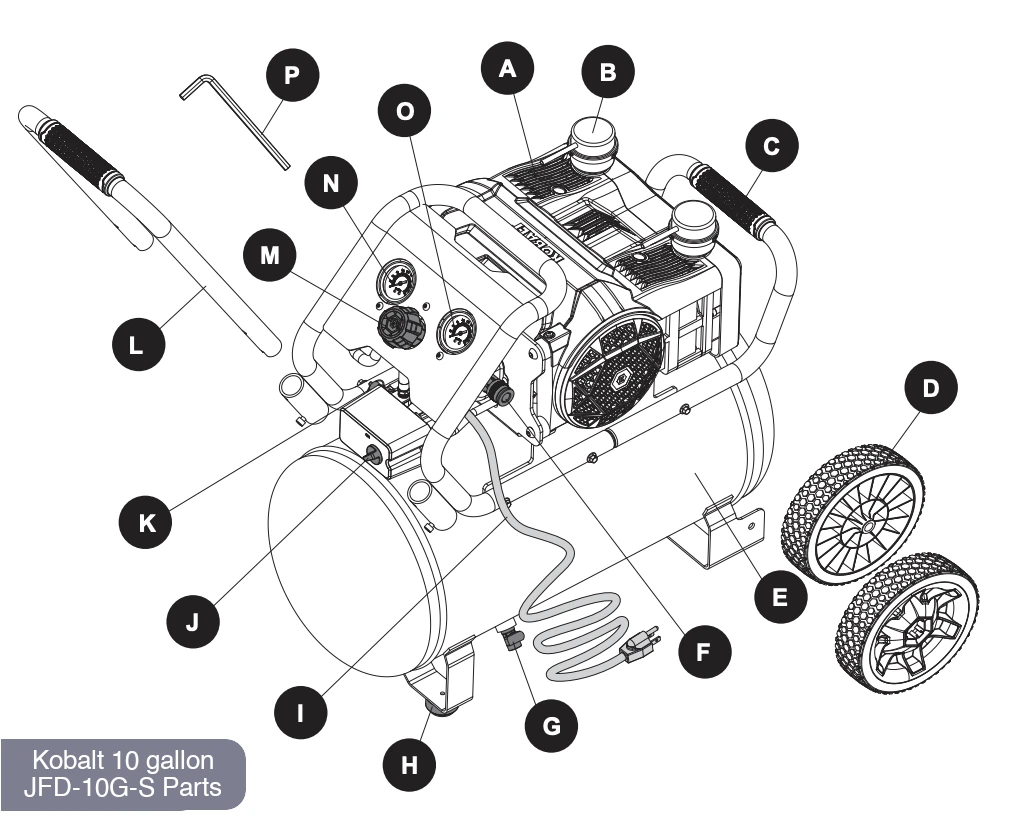

If you’re searching for parts for the Kobalt 10 Gal Air Compressor Parts – JFD-10G-S, you’re in the right place. Here you’ll find a complete parts list for the Kobalt JFD-10G-S model, along with an exploded view diagram that shows the exact location of every component.
This makes it easy to identify the part you need and keep your air compressor running at peak performance – whether you’re doing routine maintenance or a full repair.

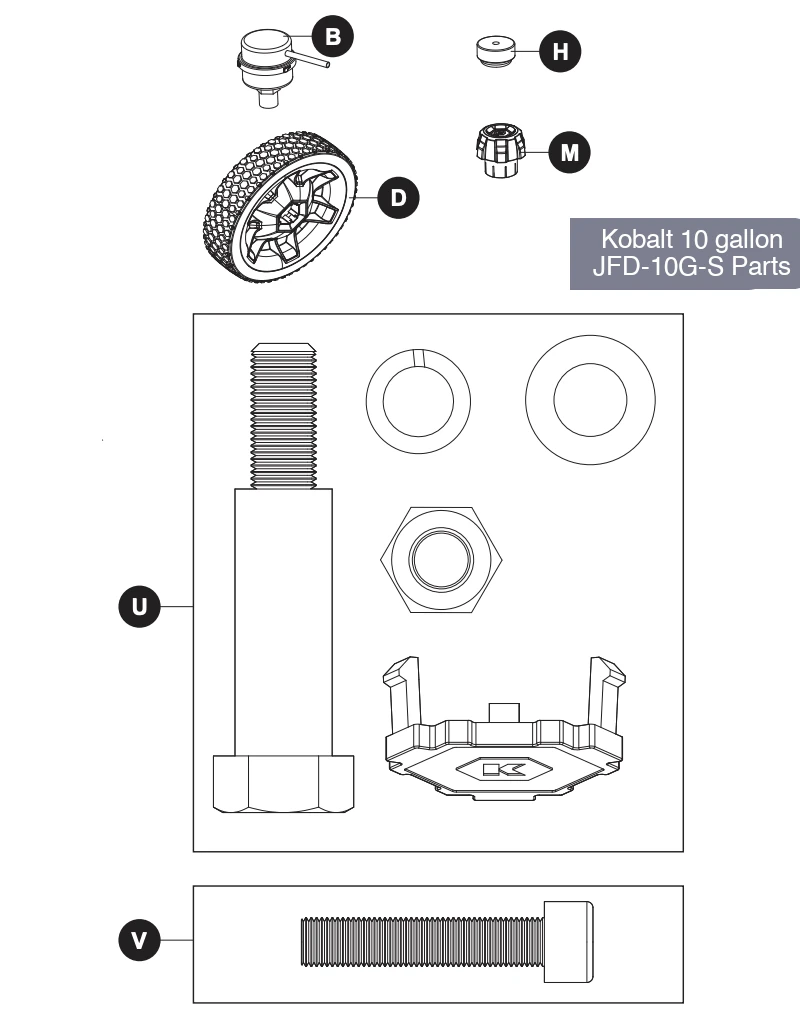

Kobalt JFD-10G-S Parts List:
| Ref # | Description | Part Number | Qty |
|---|---|---|---|
| A | Electric Motor and Pump | 1 | |
| B | Air Filter | 574465101 | 2 |
| C | Rear Handle | 1 | |
| D | 7 in. Wheel | 574465102 | 2 |
| E | Air Tank | 1 | |
| F | Coupler | 1 | |
| G | Drain Valve | 1 | |
| H | Rubber Foot | 574465103 | 2 |
| I | Power Cord | 1 | |
| J | Pressure Switch | 1 | |
| K | Safety Valve | 1 | |
| L | Front Handle | 1 | |
| M | Air Pressure Regulator | 574465104 | 1 |
| N | Tank Pressure Gauge | 1 | |
| O | Tool Pressure Gauge | 1 | |
| P | 5mm Hex Key | 1 | |
| U | 7 in. Wheel Hardware | 574465105 | 1 |
| V | Hardware for Front Handle | 574465106 | 1 |
