Are you looking for the S040-0497 DEWALT Pump Parts? Then You have come to the right place.

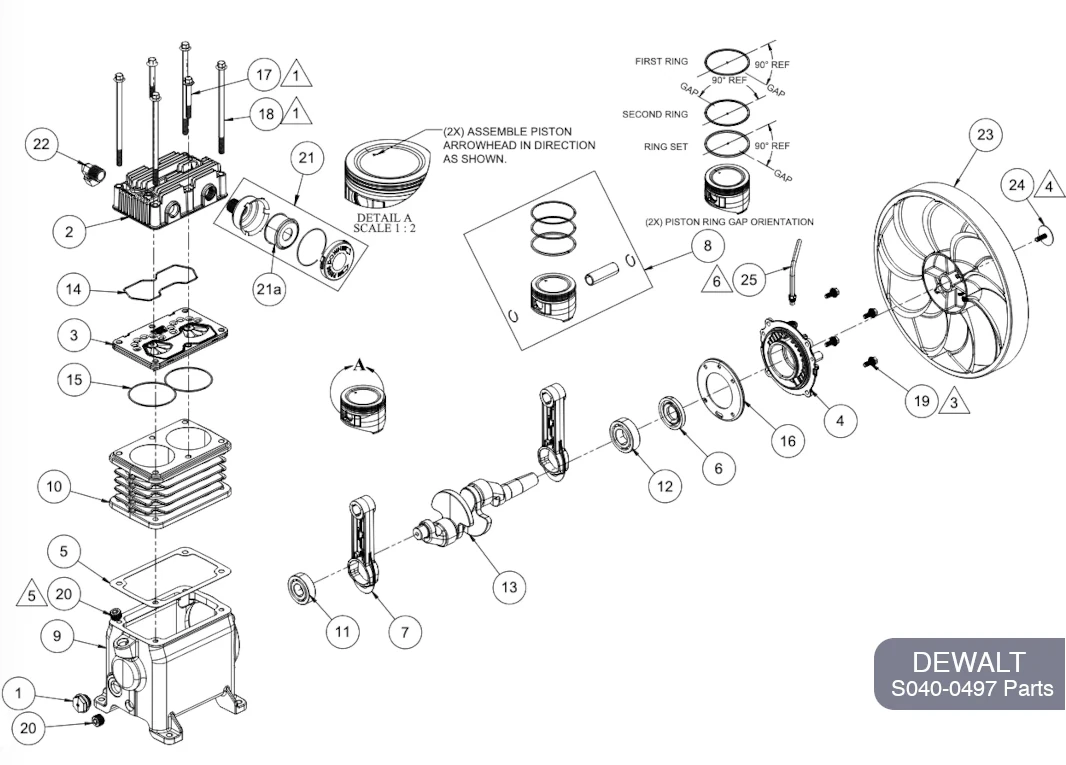

DEWALT Pump S040-0497 Parts are parts for a durable cast iron twin cylinder high-output 6.5 HP pump that is used in DEWALT 8 gal air compressor DXCMTE6590811 model. Here you can find full parts list for DEWALT S040-0497 Pump (DEWALT 8 gal air compressor DXCMTE6590811 parts) and exploded view with the locations of each part of the pump.
| ITEM NO | DESCRIPTION | PART NO. | QTY |
|---|---|---|---|
| 1 | Oil sight glass w/o-ring | E110542 | 1 |
| 2 | Head | E113241 | 1 |
| 3 | Valve plate assy | E110564 | 1 |
| 4 | Carrier | E110578 | 1 |
| 5 | Gasket, cylinder | E110567 | 1 |
| 6 | Oil seal | E110576 | 1 |
| 7 | Rod | E110571 | 2 |
| 8 | Piston assembly | E110575 | 2 |
| 9 | Crankcase | E110568 | 1 |
| 10 | Cylinder | E110566 | 1 |
| 11 | Bearing 20 MM 6204 | E110569 | 1 |
| 12 | Bearing 25MM 6205 | E110574 | 1 |
| 13 | Crankshaft | E110570 | 1 |
| 14 | O-Ring Formed | E110563 | 1 |
| 15 | O-Ring | E110565 | 2 |
| 16 | Baffle | E110577 | 1 |
| 17 | Screw Hex Flange M8 X 60MM | E110560 | 2 |
| 18 | Screw Hex Flange M8 X 150MM | E110561 | 4 |
| 19 | Screw Serr Hex Flange M6 X 16MM | E110579 | 4 |
| 20 | Plug Hex Socket | E110543 | 2 |
| 21 | Filter Assy, Metal V-Twin | 019-0305 | 1 |
| 21a | Filter | 019-0328 | 1 |
| 22 | Connector Male 1/2 NPT X 11/16 | 068-0009 | 1 |
| 23 | Flywheel, 12″ Diameter | 044-0083 | 1 |
| 24 | Screw M8 X 1.25 X 25MM Flywheel | 059-0467 | 1 |
| 25 | Vent Tube Assembly | E114247 | 1 |
| 26 | Gasket Set (includes items 1, 5, 6, 14, 15 and 16) | E110580 | 1 |
| 27 | Pump Assembly (includes items 1-21, 23 and 24) | S040-0497 | 1 |
If you need any help with finding the right part or installing it, you can contact their customer service or check their online manuals. Click here if you need parts list for DEWALT 8 gal air compressor DXCMTE6590811 Model.
