DEWALT 8 Gal Air Compressor, DXCMTE6590811 – Parts

Do you need to repair your DXCMTE6590811 DEWALT 8 Gal Air Compressor? Looking for the DEWALT 8 Gallon Kohler Gas Powered Wheelbarrow Air Compressor DXCMTE6590811 Parts?

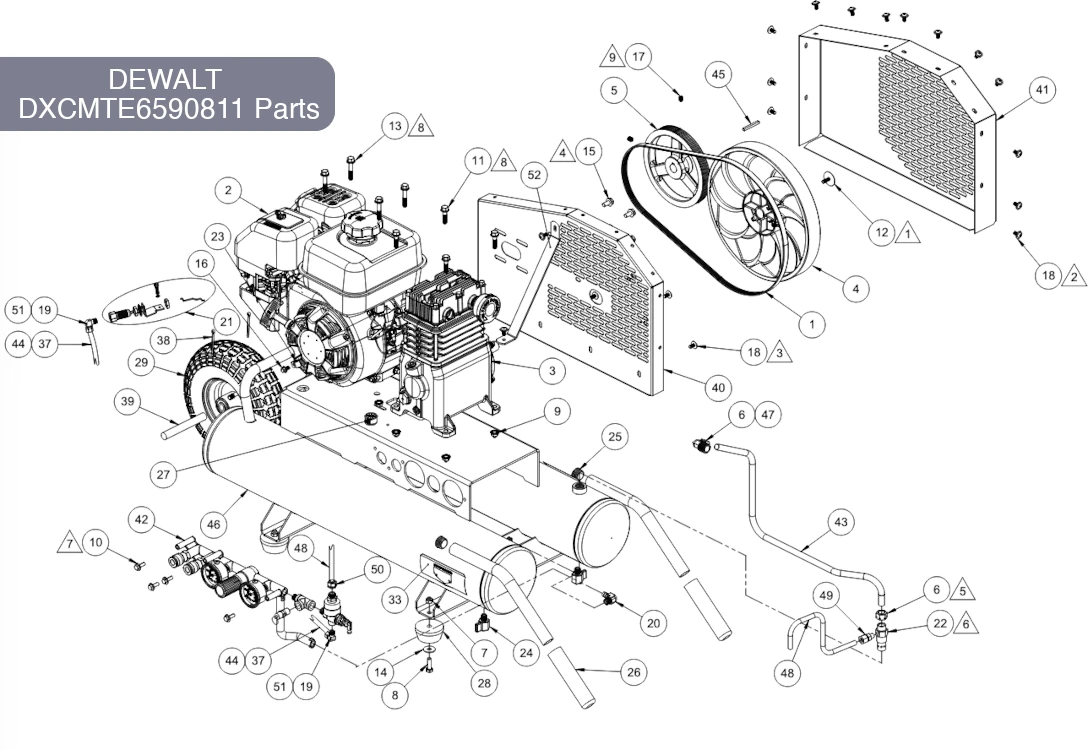

Here you can find full parts list for DEWALT DXCMTE6590811 Model and exploded view with the locations of each part of the air compressor.

1V-Belt, 500J6007-00761
2Engine 6.5 HP Kohler025-01041
3Pump Assy, I11 (see pages 4-5)S040-04971
4Flywheel, 12″ Diameter044-00831
5Sheave/Pully 7″044-00861
6Comp Nut & Sleeve 1/2058-00162
7Nut 5/16-18 Nylon Stop058-01294
8Bolt 5/16NC HHCS x 1 G5Z059-00094
9Nut 5/16-18 Serrated Flange058-01258
10Screw, 1/4-20 Thread Rolling059-04754
11Bolt, 5/16-18 Hex Flange x1.25059-04104
12Screw M8 x 1.25 x 25mm059-04671
13Bolt 5/16-18 x 1.75″059-04804
14Washer, Fender 5/16″ ID x 1″ OD060-02024
15Screw 5/16-24 x 5/8″059-01494
16Screw, M6x 1x 12mm Lg061-02301
17Set Screw 5/16-18 x .38061-02382
18Screw, T30 Pan Head .250-20 UNC X .50059-047721
19Elbow 90D Brass 1/8″NPT x 1/4″064-00032
20Elbow 1/4″ NPT x 3/8″ OD064-01431
21Valve Throttle Control Honda GX16090-00481
22Check Valve 1/2″ NPT x 1/2″ Tube031-00601
23Clamp Strain Relief 1/4″ W/ Blk Vinyl071-00361
24Drain Valve 1/4 NPT, 1/4 Turn072-00192
25Cap, Plastic 1.00077-01552
27Grommet Interconnect Cord Bushing093-00781
28Vibration Pad094-01864
29Wheel, 10″ Pneu 5/8″ Bore Centered Hub095-00991
30Label, Caution (not shown)098-10211
31Label, Caution (not shown)098-10221
32Label Warning Hot Surface (not shown)098-28561
33Label, Warning Tk Drain098-42712
34Label, Warning (not shown)098-57091
35Label, Caution (not shown)098-61631
36Label, Warning Prop65 (not shown)098-61732
37Brass Insert – Nylon Tubing145-07362
38Cotter Pin 5/32″ x 2″ Long107-00782
39Axle, 5/8″ Dia x 4.75″ LongS110-00711
40Beltguard, InnerS125-02691
41Beltguard, OuterS125-02701
42Manifold Regulator Assy (see page 6)S141-03691
43Transfer TubeS145-07391
44Tube, Nylon 1/4″ OD x 37″S145-07351
45Key 3/16 x 1″146-00161
46Twin Tank 8 Gal (includes items 7, 8, 14, 24-36 & 38-39)S150-02151
47Elbow 90D Brass064-00021
48Tube, UnloaderS145-07401
49Connector Male 1/8 NPT 3/8″ Tube068-00641
50Comp Nut & Sleeve 3/8058-00072
51Comp Nut & Sleeve 1/4058-00172
52Bracket, Beltguard114-09431
DEWALT #DXCMTE6590811 Parts List

Check here if you need parts list for DEWALT Motor S040-0497 (for DXCMTE6590811).
