Do you need to repair your CE4104 Campbell Hausfeld 80 Gal Air Compressor? Looking for the Campbell Hausfeld 80 Gallon Air Compressor CE4104 (CE5003) Parts?

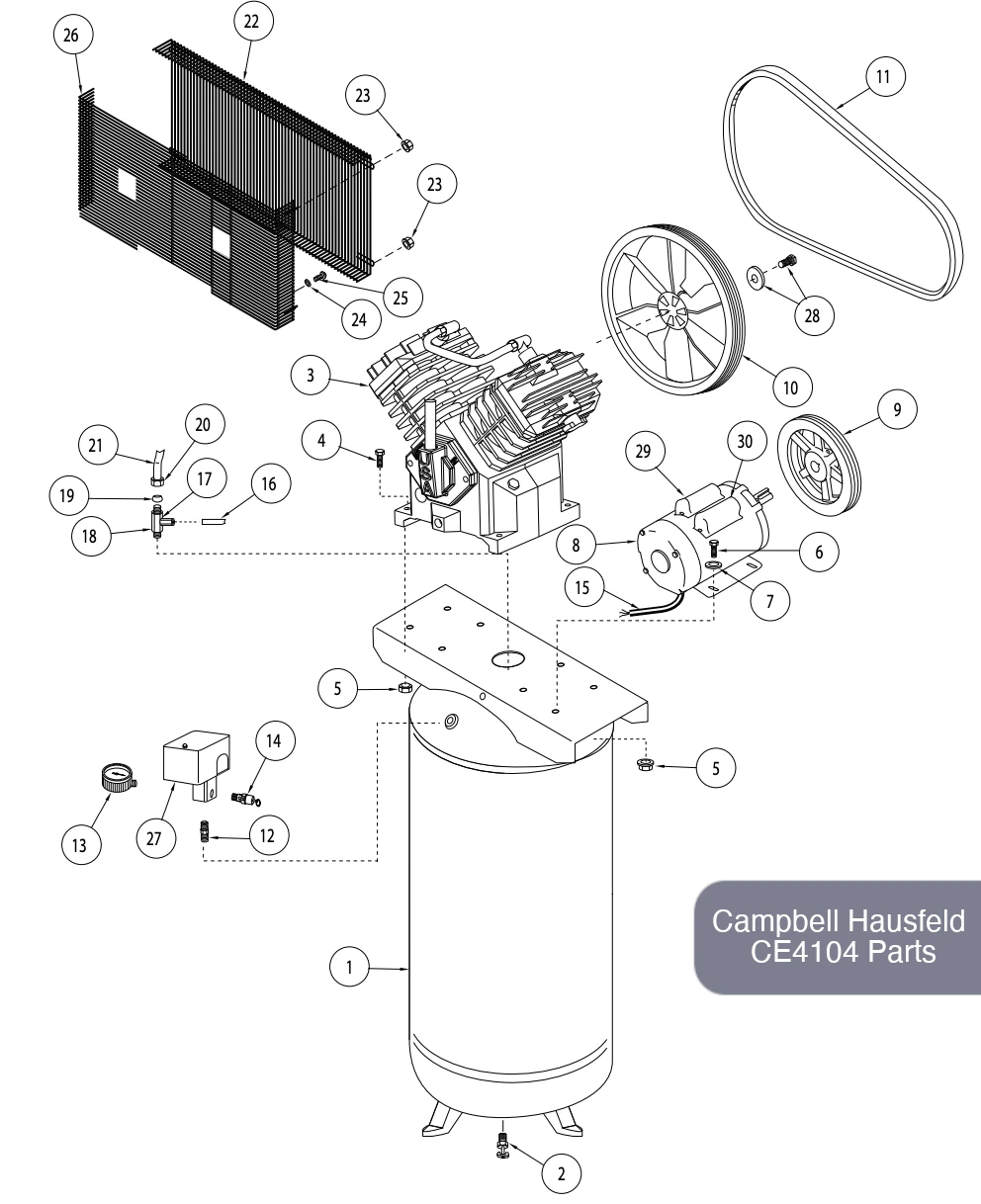

Here you can find full parts list for Campbell Hausfeld CE4104 (CE5003) Model and exploded view with the locations of each part of the air compressor.
| Ref. No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | AIR TANK | AG232401CG | 1 |
| 2 | DRAIN VALVE | ST127700AV | 1 |
| 3 | AIR COMPRESSOR PUMP WITH FLYWHEEL | TQ3010 | 1 |
| 4 | 5/16 INCH – 18 X 1-1/2 INCH HEX HEAD BOLT | – | 4 |
| 5 | 5/16 IN – 18 LOCKNUT | – | 8 |
| 6 | 5/16 INCH – 18 X 3/4 INCH HEX HEAD BOLT | – | 1 |
| 7 | 5/16 INCH WASHER | – | 4 |
| 8 | ELECTRIC MOTOR | MC035700AV | 1 |
| 9 | MOTOR PULLEY | PU017001AV | 1 |
| 10 | FLYWHEEL | PU017100AV | 1 |
| 11 | BELT | BT013101AV | 1 |
| 12 | PIPE NIPPLE | HF002401AV | 1 |
| 13 | PRESSURE GAUGE | GA031900AV | 1 |
| 14 | SAFETY VALVE | V-215105AV | 1 |
| 15 | ELECTRIC CORD | EC014800AV | 1 |
| 16 | UNLOADER TUBE | ST117802AV | 1 |
| 17 | STRAIGHT PUSH CONNECT | ST081301AV | 1 |
| 18 | CHECK VALVE | CV223300AV | 1 |
| 19 | 1/2 INCH COMPRESSION SLEEVE | ST032900AV | 1 |
| 20 | 1/2 INCH COMPRESSION NUT | ST033001AV | 1 |
| 21 | DISCHARGE TUBE | TQ901600AP | 1 |
| 22 | FRONT BELTGUARD | BG307400AV | 1 |
| 23 | 10 – 24 HEX-FLANGE NUT | ST116201AV | 5 |
| 24 | 5/16 INCH WASHER | ST011200AV | 2 |
| 25 | 5/16 INCH SELF-TAPPING SCREW | ST016500AV | 4 |
| 26 | BACK BELTGUARD | BG307500AV | 1 |
| 27 | PRESSURE SWITCH (WITH UNLOADER VALVE) | CW212201AV | 1 |
| 28 | FLYWHEEL FASTNER KIT | TQ901400AV | 1 |
| 29 | CAPACITOR – START | MC507025AV | 1 |
| 30 | CAPACITOR – RUN | MC506912AV | 1 |
| – | WARNING DECAL (NOT SHOWN) | DK747600AV | 1 |
| – | PRESSURE SWITCH UNLOADER VALVE (NOT SHOWN) | CW210001AV | 1 |
| – | PRESSURE SWITCH COVER (NOT SHOWN) | CW217800AV | 1 |
Check here if you need parts list for Campbell Hausfeld Pump TQ3010 Parts (for CE4104).
