Do you need to repair 02106416 Ridgid 6 Gal Air Compressor ? Looking for the Ridgid 6 Gal Pancake Air Compressor 02106416 Parts? Then You have come to the right place.

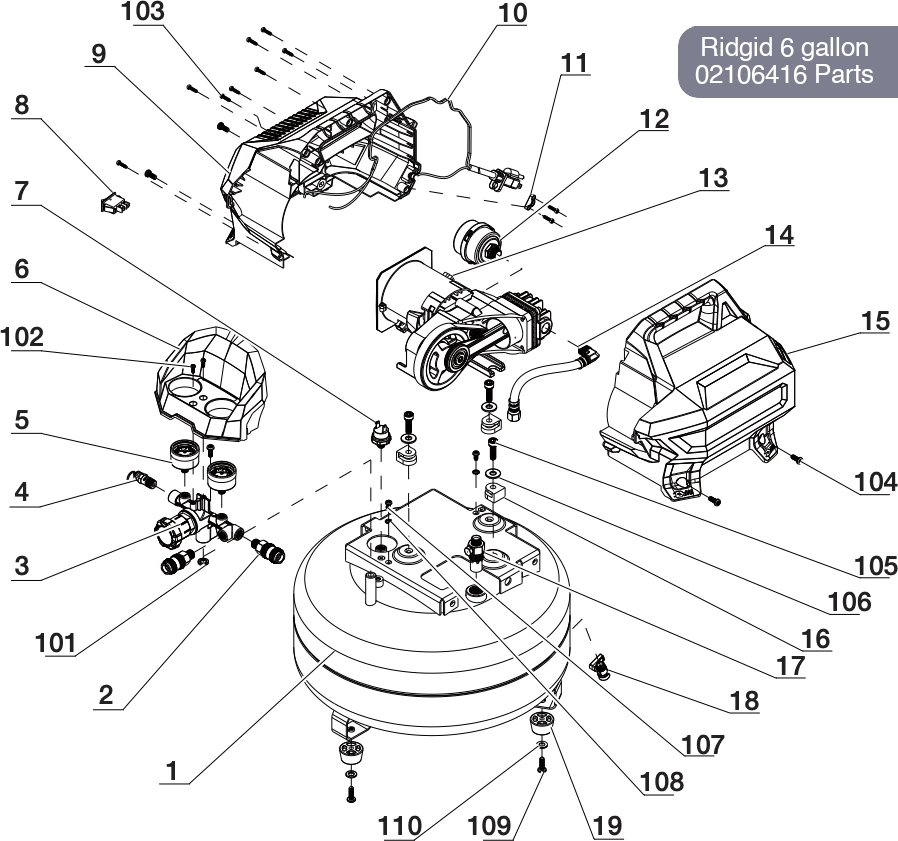

Here you can find full list of Ridgid 02106416 Parts and exploded view with the locations of each part of the air compressor.
Dive deep into our comprehensive guide on Ridgid air compressor, where you’ll find detailed information on different models, their features, and applications. Also, check out our detailed review of the Ridgid 4.5 Gallon Air Compressor.
Ridgid 02106416 Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Air Tank | AT4037.00.00.01 | 1 |
| 2 | Quick Coupler | J2990071010 | 2 |
| 3 | Pressure Regulator | J0302011129 | 1 |
| 4 | Safety Valve | J0022520037 | 1 |
| 5 | Pressure Gauge | F5013701787 | 2 |
| 6 | Cover | Q345A960001 | 1 |
| 7 | Pressure Switch | D3005000164 | 1 |
| 8 | On/off Switch | D3006000212 | 1 |
| 9 | Cover (L) | Q345AF44005 | 1 |
| 10 | Power Cord | D1024046420 | 1 |
| 11 | Crimping Board | Q0001248001 | 1 |
| 12 | Air Filter | J3091031064 | 1 |
| 13 | Motor | A3518911733 | 1 |
| 14 | Metal Tube | J8332001128 | 1 |
| 15 | Cover (R) | Q345AF54005 | 1 |
| 16 | Cushion Pad | X0000350353 | 3 |
| 17 | Check Valve | J0189610988 | 1 |
| 18 | Drain Valve | J0905070201 | 1 |
| 19 | Rubber Foot | X0000590365 | 3 |
| 101 | Sealing Ring | X0000820478 | 1 |
| 102 | Screw M4x12 | J0784290032 | 2 |
| 103 | Hexagon Screws | J0782020733 | 10 |
| 104 | Hexagon Screws | J0782030733 | 5 |
| 105 | Screw M8x25 | J0783410033 | 3 |
| 106 | Washer 08×20 | J2983450040 | 3 |
| 107 | Screw M5x10 | J0782410032 | 2 |
| 108 | Lock Washer 05 | J2981200040 | 2 |
| 109 | Screw M6x12 | J0784410033 | 3 |
| 110 | Washer 08×16 | J2982120040 | 3 |
