Find the exact replacement part for your Kobalt 4.3 Gal Air Compressor 3320446 by browsing its major components. We’ve organized our parts list and schematic diagram to help you quickly locate what you need for any repair.
Stop guessing which part to order. Our official Kobalt 3320446 parts schematic allows you to visually troubleshoot your machine and identify every component by its exact part number. Get your 4.3-gallon Kobalt compressor performing like new again. Browse the parts diagram to find what you need, and get your project back on track.

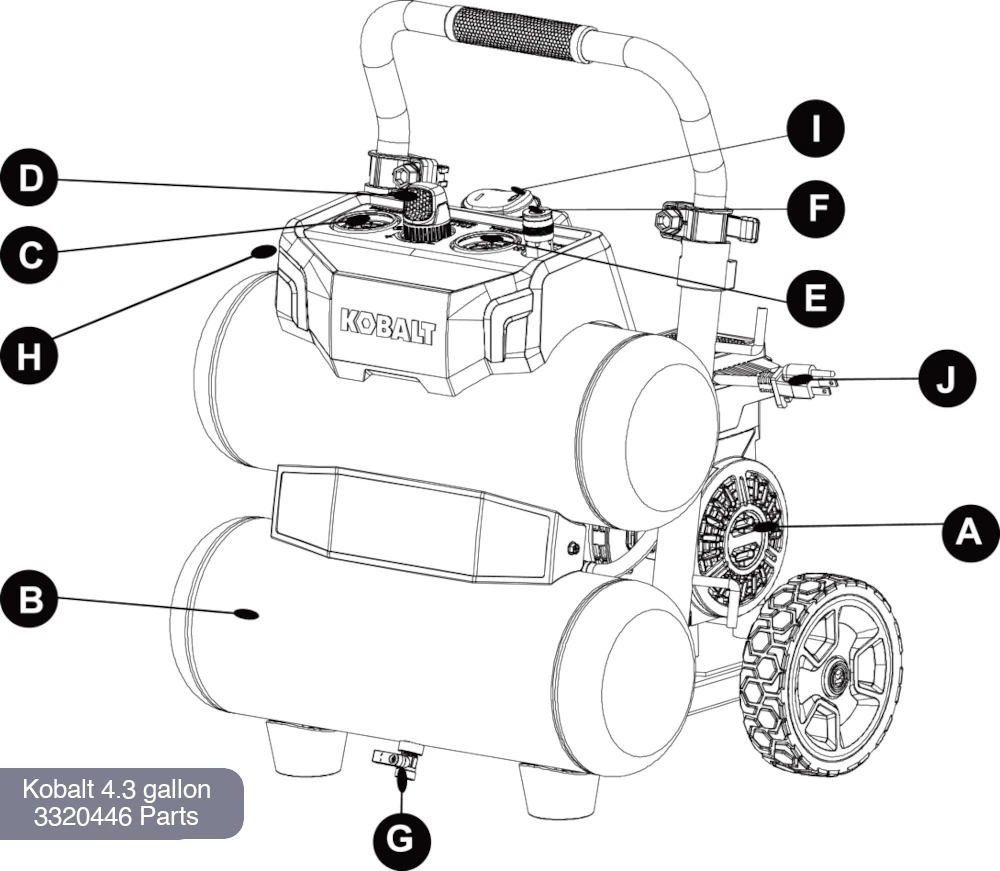

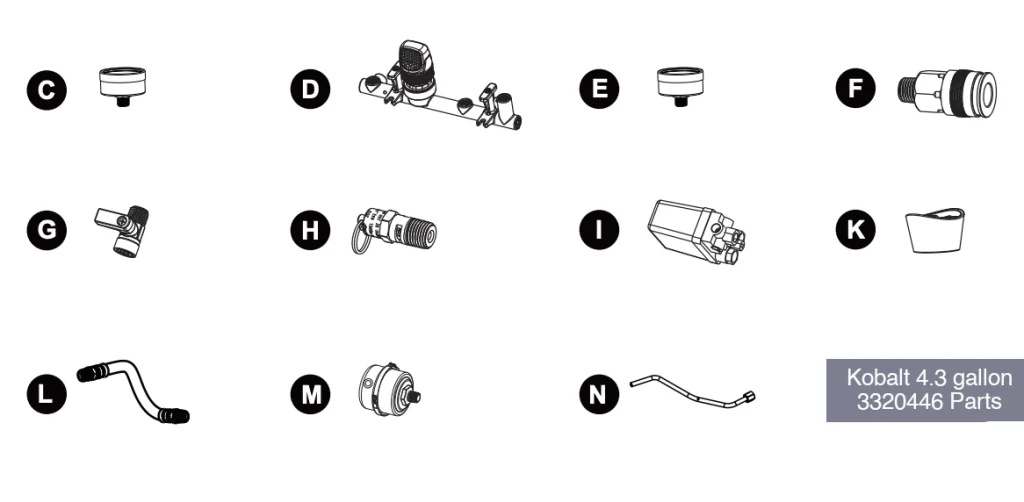

Kobalt 3320446 Parts List
| Ref No | Description | Part Number |
|---|---|---|
| C | Tank Pressure Gauge | TAPGAX.50.01 |
| D | Air Pressure Regulator | TAVA01.RE.20 |
| E | Regulated Pressure Gauge | TAPGAX.50.01 |
| F | Quick Coupler | TATF03.01.01 |
| G | Drain Valve | TAVA02.DV.03 |
| H | Safety Valve | TAVA01.SV.01 |
| I | Pressure Switch | TASWPS.00.11 |
| K | Rubber Foot | TARP01.01.05 |
| L | Rubber Hose | TATF02.06.02 |
| M | Air Filter | TAFI01.02.01 |
| N | Bleeding Tube | TATF01.02.06 |
