Looking to repair your Kobalt 3300244 2 Gallon Air Compressor? Need parts for the Kobalt 3300244 model?

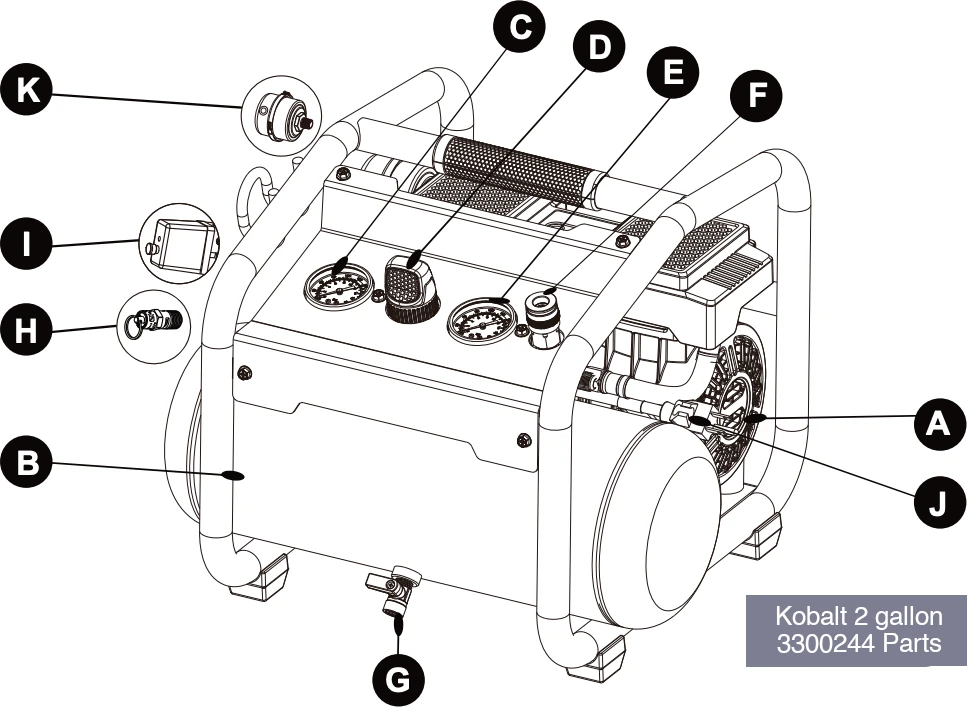

You’re in the right place! We offer a complete parts list for the Kobalt air compressor, along with an exploded view that details the exact location of each component. Whether you’re performing maintenance or a full repair, these resources will help you get the job done.

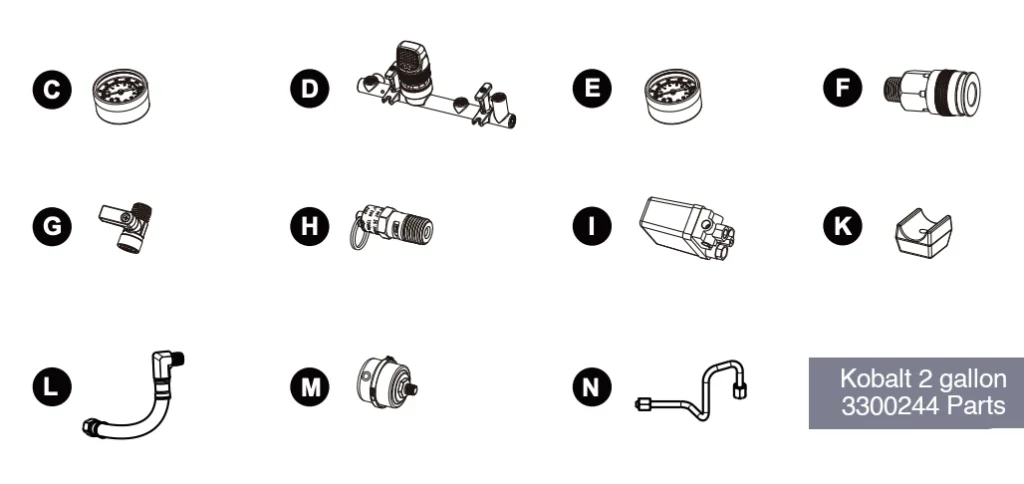

Kobalt 3300244 Parts List
| Ref No | Description | Part Number |
|---|---|---|
| C | Tank Pressure Gauge | TAPGAX.50.06 |
| D | Air Pressure Regulator | TAVA01.RE.20 |
| E | Regulated Pressure Gauge | TAPGAX.50.06 |
| F | Quick Coupler | TATF03.03.02 |
| G | Drain Valve | TAVA02.DV.03 |
| H | Safety Valve | WCFAAQ.01.15 |
| I | ON/OFF Switch | TASWPS.00.23 |
| K | Rubber Foot | TARP01.01.08 |
| L | Transfer Tube | TATF02.03.08 |
| M | Air Filter | TAF101.02.01 |
| N | Bleeding Tube | TAF101.02.01 |
