Is your 3310643 Husky 6 Gallon Air Compressor in need of repair? Fortunately, We offer a comprehensive parts list for Husky 3310643 Model, making it easy to find the right Husky 6 Gallon Air Compressor 3310643 Parts.

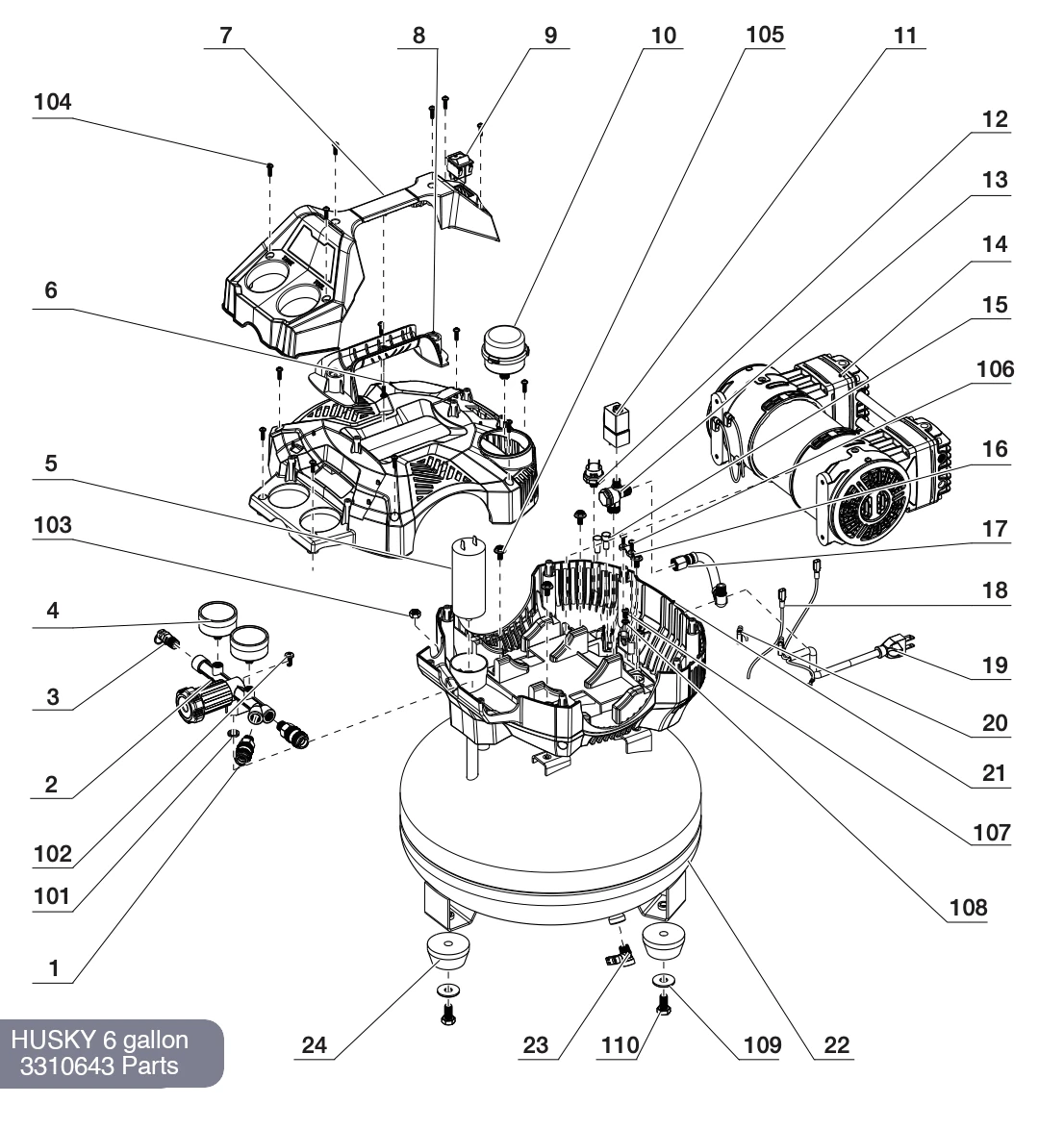

Get detailed exploded view parts diagrams that clearly showcase the location of each component within your 3310643 air compressor.
Meanwhile, if you’re looking to explore other options, check out our selection of Husky air compressors and discover top models, key features, and helpful buying tips.
Husky 3310643 Parts List
| Ref No | Description | Qty |
|---|---|---|
| 1 | Quick coupler | 2 |
| 2 | Pressure regulator knob | 1 |
| 3 | Safety valve | 1 |
| 4 | Pressure gauge | 2 |
| 5 | Capacitance | 1 |
| 6 | Shroud (up) | 1 |
| 7 | Handle (up) | 1 |
| 8 | Handle (down) | 1 |
| 9 | On/off switch | 1 |
| 10 | Air Filter | 1 |
| 11 | Electromagnetic valve | 1 |
| 12 | Pressure switch | 1 |
| 13 | Check valve | 1 |
| 14 | Motor | 1 |
| 15 | Crimp cap | 2 |
| 16 | Clamp | 1 |
| 17 | Metal tube | 1 |
| 18 | Connection lines | 1 |
| 19 | Power cord | 1 |
| 20 | Connection lines | 1 |
| 21 | Shroud (down) | 1 |
| 22 | Tank | 1 |
| 23 | Ball valve | 1 |
| 24 | Rubber foot | 3 |
| 101 | Sealing ring | 1 |
| 102 | Screw M6x15 | 1 |
| 103 | Nuts M8 | 1 |
| 104 | Screw ST4.2x16F | 15 |
| 105 | Screw M6x14 | 4 |
| 106 | Screw ST3.5x12F | 2 |
| 107 | Screw M5x10 | 2 |
| 108 | Lock washer Ø5 | 2 |
| 109 | Washer Ø10 | 3 |
| 110 | Screw M10x20 | 3 |
