Do you need to repair 02106415 Husky 6 Gal. Air Compressor ? Looking for the Husky 6 Gallon Pancake Air Compressor 02106415 Parts? Then You have come to the right place.

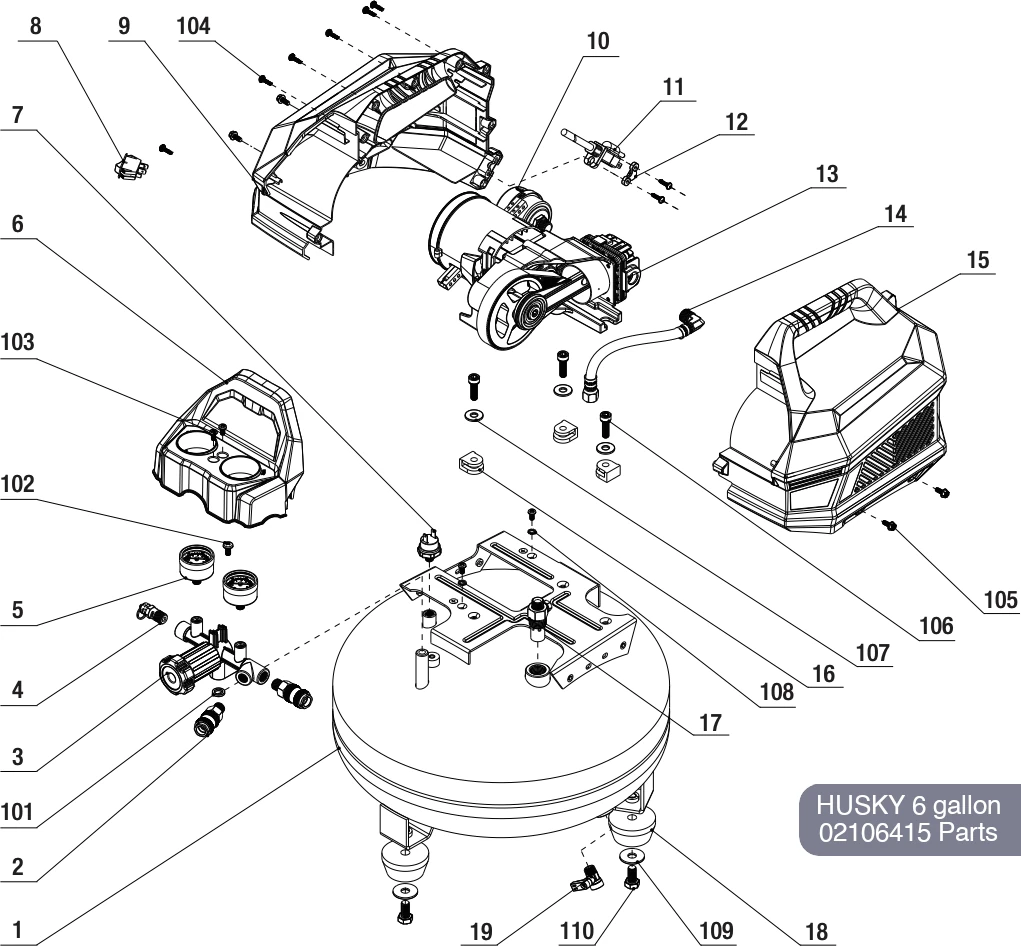

Here you can find full parts list for Husky 02106415 Model and exploded view with the locations of each part of the air compressor.
Husky 02106415 Parts List
| Ref No | Description | Qty |
|---|---|---|
| 1 | Tank | 1 |
| 2 | Quick coupler | 2 |
| 3 | Pressure regulator knob | 1 |
| 4 | Safety valve | 1 |
| 5 | Pressure gauge | 2 |
| 6 | Front shroud | 1 |
| 7 | Pressure switch | 1 |
| 8 | On/off switch | 1 |
| 9 | Left shroud | 1 |
| 10 | Air Filter | 1 |
| 11 | Power cord | 1 |
| 12 | Clamp | 1 |
| 13 | Motor | 1 |
| 14 | Metal tube | 1 |
| 15 | Right shroud | 1 |
| 16 | Cushion pad | 3 |
| 17 | Check valve | 1 |
| 18 | Rubber foot | 3 |
| 19 | Ball valve | 1 |
| 101 | Sealing ring | 1 |
| 102 | Screw M6x12 | 1 |
| 103 | Screw M5x15 | 4 |
| 104 | Screw ST3.9x16F | 10 |
| 105 | Screw M5x12 | 4 |
| 106 | Screw M8x25 | 3 |
| 107 | Washer Ø8 | 3 |
| 108 | Lock washer Ø5 | 2 |
| 109 | Washer Ø10 | 3 |
| 110 | Screw M10x20 | 3 |
