Looking for the Husky 3 Gal Air Compressor 0200345 Parts? Do you need to repair your 0200345 Husky 3 Gal. 120 PSI Portable Hotdog Air Compressor?

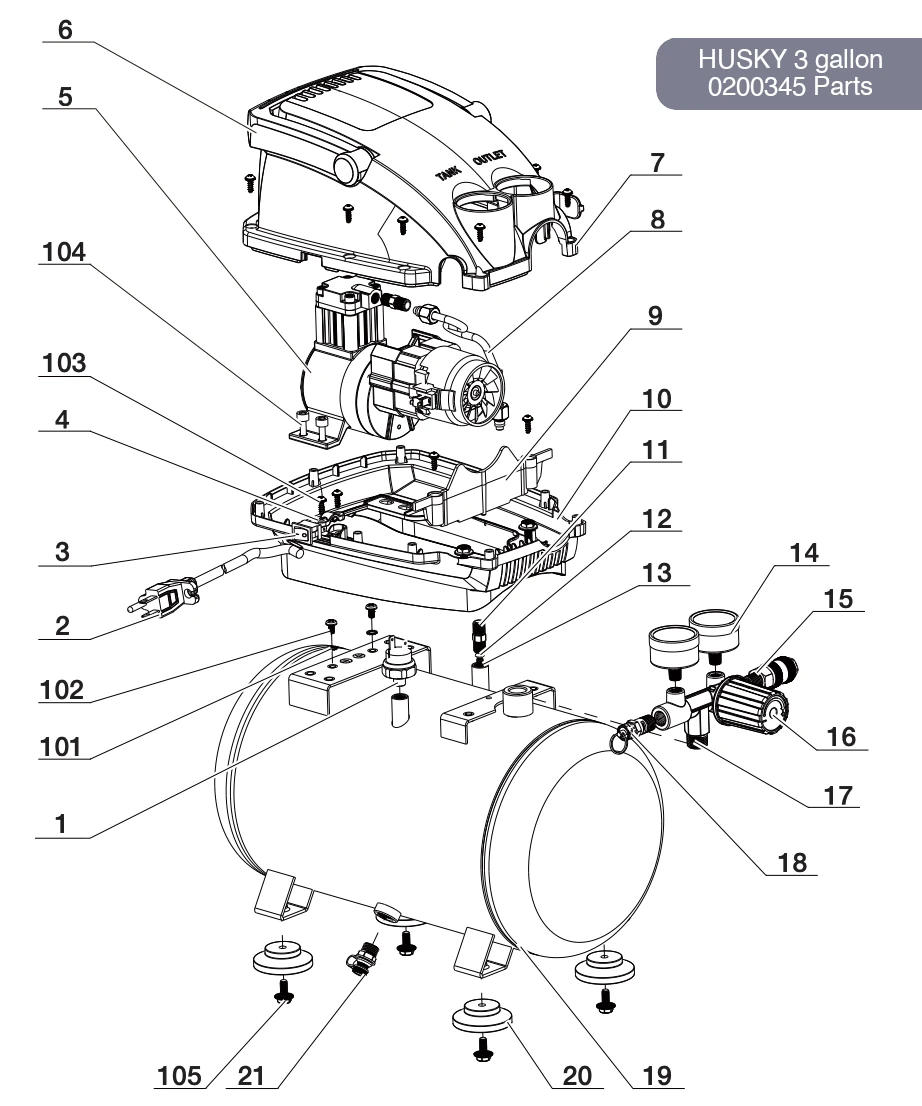

Here you can find full parts list for Husky 0200345 Model and exploded view with the locations of each part of the air compressor.
Find expert tips and recommendations for selecting the right Husky air compressor based on your specific needs and requirements.
Husky 0200345 Parts List
| Ref No | Description | Qty |
|---|---|---|
| 1 | Pressure switch | 1 |
| 2 | Power cord | 1 |
| 3 | ON/OFF switch | 1 |
| 4 | Pressing board | 1 |
| 5 | Motor pump head | 1 |
| 6 | Handle | 1 |
| 7 | Upper case | 1 |
| 8 | Aluminum air pipe assembly | 1 |
| 9 | Heat shield | 1 |
| 10 | Lower case | 1 |
| 11 | Straight fitting | 2 |
| 12 | Spring | 1 |
| 13 | Check valve plug | 1 |
| 14 | Pressure gauge | 2 |
| 15 | Quick coupler | 1 |
| 16 | Air pressure regulator | 1 |
| 17 | Header component | 1 |
| 18 | Safety Valve | 1 |
| 19 | Air tank | 1 |
| 20 | Rubber foot | 4 |
| 21 | Drain valve | 1 |
| 101 | External serrated lock washer | 2 |
| 102 | Bolt M5x8 | 2 |
| 103 | Screw ST3.9×14 | 13 |
| 104 | Screw M6x16 | 4 |
| 105 | Bolt M6x14 | 6 |
