Is your Husky 10 Gallon Air Compressor in need of parts? Look no further! We offer a comprehensive parts list for Husky 3301042 Model, making it easy to find the right parts.

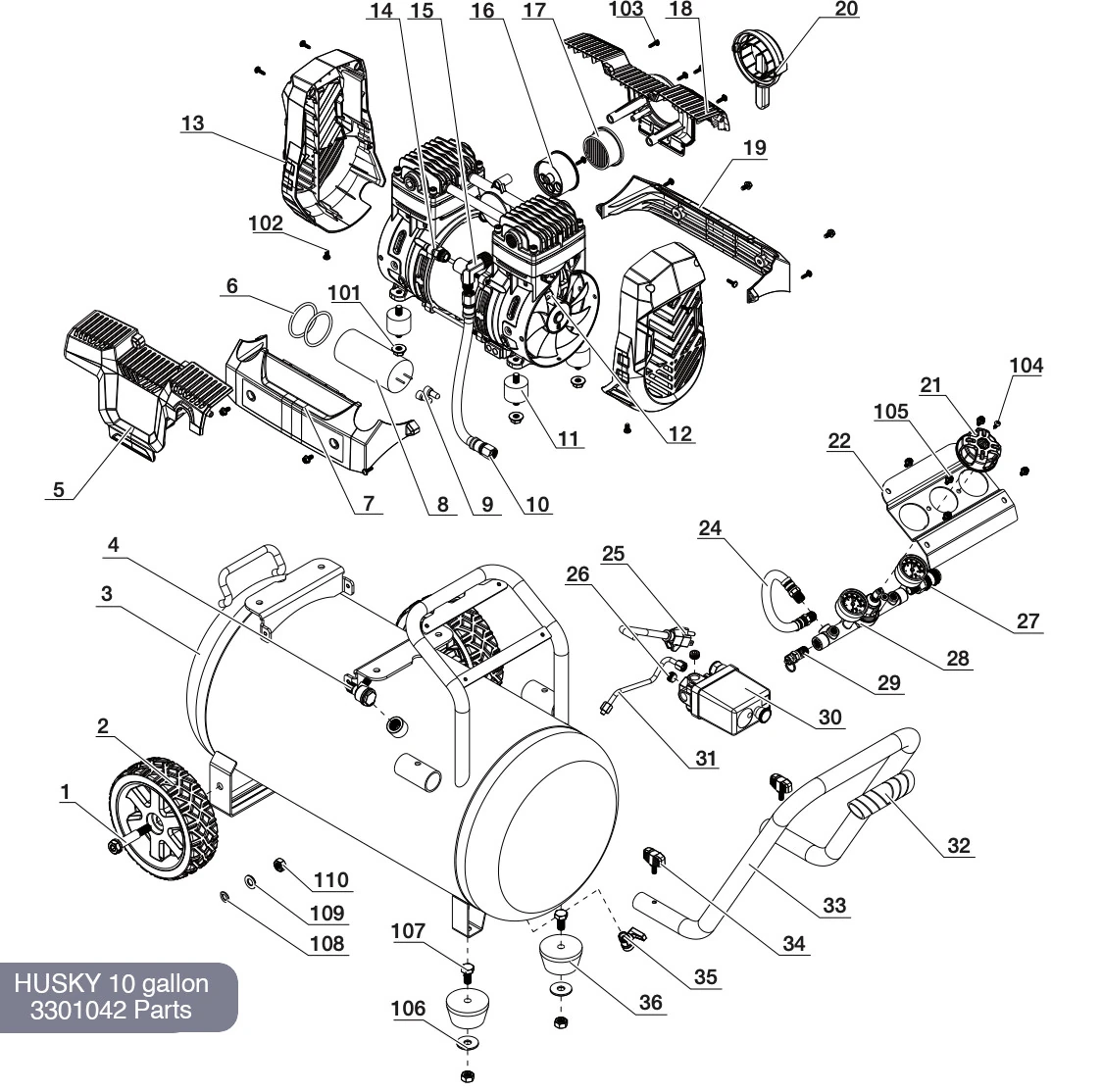

Here you can find full parts list for Husky 3301042 Model and exploded view with the locations of each part of the air compressor.
Husky 3301042 Parts List
| Ref No | Description | Qty |
|---|---|---|
| 1 | Axle | 2 |
| 2 | Wheel | 2 |
| 3 | Tank Assembly | 1 |
| 4 | Check Valve | 1 |
| 5 | Cover (Front) | 1 |
| 6 | 0-Ring | 2 |
| 7 | Capacitor Front Baffle | 1 |
| 8 | Capacitor | 1 |
| 9 | Crimping Cap | 2 |
| 10 | Metal Hose | 1 |
| 11 | Cushion Pad | 4 |
| 12 | Motor | 1 |
| 13 | Side Cover | 2 |
| 14 | Vent Valve | 1 |
| 15 | Tee Connector | 1 |
| 16 | Air Filter Middle Cover | 1 |
| 17 | Air Filter Element | 1 |
| 18 | Air Filter Cover (Back) | 1 |
| 19 | Capacitor Back Baffle | 1 |
| 20 | Air Filter Cover | 1 |
| 21 | Pressure Regulating Valve Knob | 1 |
| 22 | Control Panel | 1 |
| 23 | Pressure Gauge | 2 |
| 24 | Rubber Hose | 1 |
| 25 | Power Cord | 1 |
| 26 | End Cap | 2 |
| 27 | Quick Coupler | 1 |
| 28 | Pressure Regulator | 1 |
| 29 | Safety Valve | 1 |
| 30 | Pressure Switch | 1 |
| 31 | Aluminum Tube | 1 |
| 32 | Hand Grip | 1 |
| 33 | Handle | 1 |
| 34 | Locking Knob | 2 |
| 35 | Drain Valve | 1 |
| 36 | Rubber Foot | 2 |
| 101 | Hexagonal Flange Nut M8 | 4 |
| 102 | Screw M5 X 10 | 2 |
| 103 | Screw ST3.9 X 14F | 14 |
| 104 | Screw M4 X 10 | 1 |
| 105 | Hexagon Flange Bolts M5 X 12 | 10 |
| 106 | Flat Washers Ф10 | 2 |
| 107 | Hexagon Head Bolts M10 X 20 | 2 |
| 108 | Spring Washer @10 | 2 |
| 109 | Flat Washers Ф10 | 2 |
| 110 | Hex Nuts M10 | 4 |
