Do you need to repair your DWFP55126 DEWALT 6 Gal Pancake Air Compressor? Looking for the DEWALT 6 Gallon Pancake Air Compressor DWFP55126 Parts?

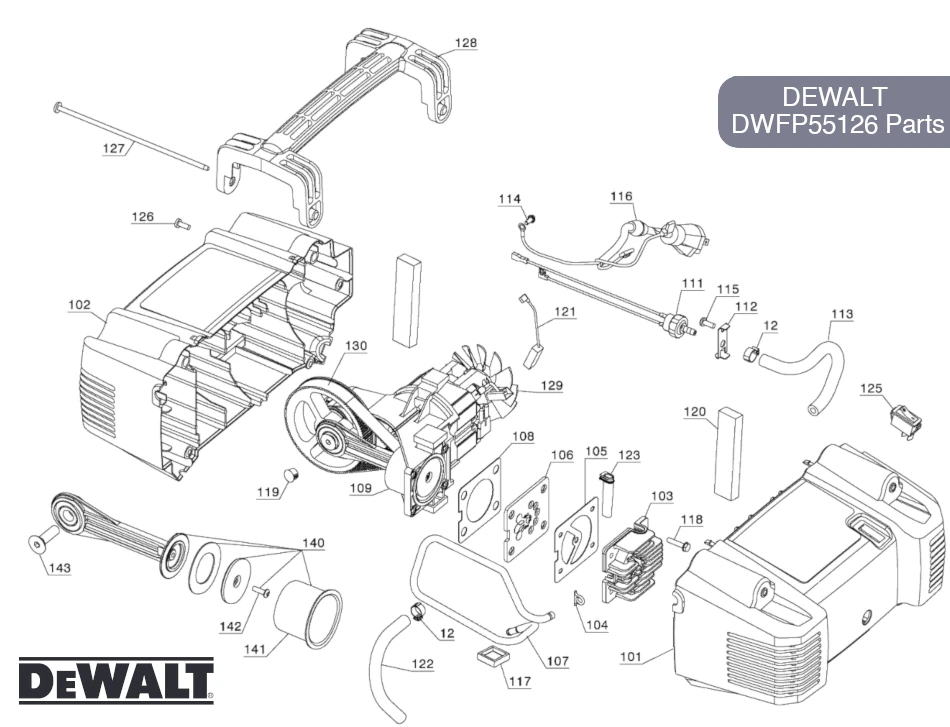

Here you can find full parts list for DEWALT DWFP55126 Model and exploded view with the locations of each part of the air compressor.
Unlock expert insights and top recommendations for selecting the perfect DEWALT air compressor that matches your unique needs. Don’t forget to dive into our in-depth review of the impressive DEWALT 4.5 Gallon Air Compressor D55146!
DEWALT DWFP55126 Parts List
| Ref. No. | Description | Part Number | Qty |
|---|---|---|---|
| 2 | SCREW .250-20X.750 H | 91895680 | 3 |
| 3 | ISOLATOR | A16989 | 3 |
| 4 | SAFETY VALVE | N375604 | 1 |
| 5 | ASSY MANIFOLD | N082939SV | 1 |
| 5 | REGULATOR KNOB | 5140160-28 | 1 |
| 5 | REGULATOR RPR KIT | 5140147-52 | 1 |
| 5 | REGULATOR RPR KIT | 5140147-53 | 1 |
| 6 | GAUGE | A17166 | 1 |
| 7 | GAUGE | A17135 | 1 |
| 8 | COVER | N219853 | 1 |
| 9 | SCREW | N030621 | 1 |
| 10 | ISOLATOR PUMP | CAC-1254 | 4 |
| 11 | CHECK VALVE | N372119 | 1 |
| 12 | CLAMP HOSE .250 ID H | CAC-1206-1 | 4 |
| 13 | SCREW .250-14X.625 F | SSF-621 | 2 |
| 15 | BALL VALVE | N072023 | 1 |
| 18 | LABEL | N332220 | 1 |
| 20 | LABEL LOGO | N030308 | 1 |
| 21 | LABEL | N339059 | 1 |
| 22 | LABEL | N383545 | 1 |
| 23 | LABEL | N332219 | 1 |
| 50 | QUICK CONNECT | A16182 | 2 |
| 51 | NIPPLE | N053094 | 1 |
| 101 | SHROUD | N383368 | 1 |
| 102 | SHROUD | N063320 | 1 |
| 103 | HEAD UMC LOW NOISE | D29116 | 1 |
| 104 | TUBE SEAL | N044359 | 1 |
| 105 | GASKET HEAD UMC GRAP | Z-D24819 | 1 |
| 106 | VALVE PLATE ASSY | N017592SV | 1 |
| 107 | OUTLET TUBE | N368829 | 1 |
| 108 | GASKET UMC | A03865 | 1 |
| 109 | PUMP ASSEMBLY | N087118SV | 1 |
| 111 | PRESSURE SWITCH | N026782 | 1 |
| 112 | BRACKET | N105826 | 1 |
| 113 | AIR HOSE | A10162 | 1 |
| 114 | SCREW #8-32X.375/.34 | SUDL-9-1 | 1 |
| 115 | SCREW #10-9X.500 THD | SSF-3156 | 1 |
| 116 | POWER CORD | N137875 | 1 |
| 117 | ISOLATOR PUMP | D25731 | 5 |
| 118 | SCREW #10-24X.875 HH | SSF-995 | 4 |
| 119 | PLUG | N375662 | 1 |
| 120 | FOAM | N031152 | 1 |
| 121 | BRUSH MOTOR UMC GOLD | Z-D27196 | 1 |
| 122 | HOSE AIR 1/4 X 10 BL | H-7051 | 1 |
| 123 | INSERT | D29368 | 1 |
| 125 | ROCKER SWITCH | N001415 | 1 |
| 126 | SCREW | D29132 | 3 |
| 127 | SCREW | N082427 | 2 |
| 128 | HANDLE | N331519 | 1 |
| 129 | FAN UMC MOTOR 8MM PL | D24595 | 1 |
| 130 | BELT TIMING DAYCO | AC-0815 | 1 |
| 140 | CON ROD ASSY | N036518 | 1 |
| 141 | CYLINDER KIT | N036517 | 1 |
| 142 | SCREW #10-24X.563 PA | D21127 | 1 |
| 143 | SCREW | A19123 | 1 |
