Looking for 97330419 Ingersoll Rand Pump Parts List? You’re in the right place!

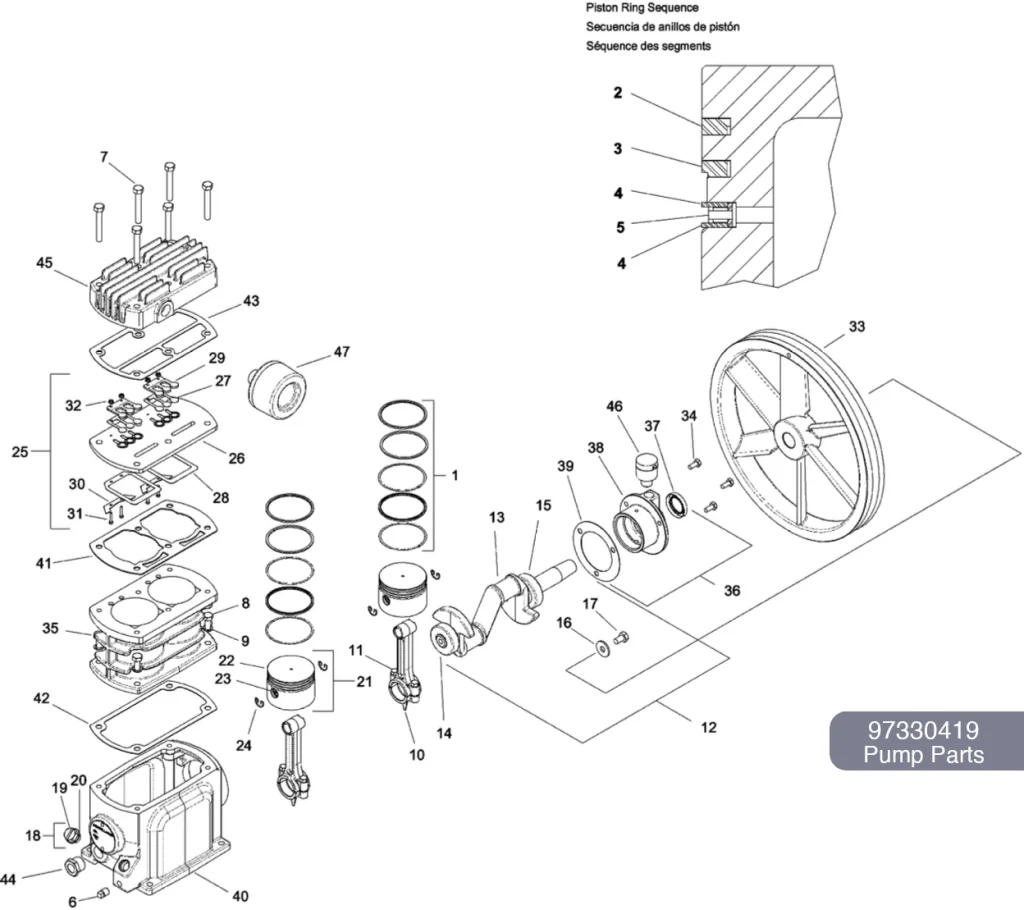

The 97330419 Pump parts are specifically designed for use in the Ingersoll Rand 60-gallon air compressor SS3L3 models. Whether you need a comprehensive parts list for the 97330419 Pump (Ingersoll Rand 60-gallon air compressor SS3L3 parts) or an exploded view detailing the exact locations of each part within the pump, you’ll find everything you need right here.
Pump 97330419 Parts
| Ref. No | Description | Part. No | Qty |
|---|---|---|---|
| 1 ▲ | SET. PISTON RING | 32307092 | 2 |
| 2 | • RING. COMPRESSION | NSS | 1 |
| 3 | • RING. SCRAPER | NSS | 1 |
| 4 | • RING. OIL CONTROL SPACER | NSS | 2 |
| 5 | • RING. OIL CONTROL | NSS | 1 |
| 6 | PLUG. OIL DRAIN | 95033585 | 1 |
| 7 | CAPSCREW, MB X 55 (HEAD BOLT) | 96715784 | 6 |
| 8 | CAPSCREW, M8 (CLINDER BOLT) | 96716113 | 4 |
| 9 | WASHER, SPRING – MB | 96728316 | 4 |
| 10 | ASSEMBLY. CONNECTING ROD | 97330427 | 2 |
| 11 | CAPSCREW. M6 X 25 | 96702246 | 2 |
| 12 | ASSEMBLY. CRANKSHAFT – SERVICE | 97338081 | 1 |
| 13 | • CRANKSHAFT | NSS | 1 |
| 14 | • BEARING, MAIN | NSS | 1 |
| 15 | • BEARING, BALL | NSS | 1 |
| 16 | WASHER, M8 | 54375977 | 1 |
| 17 | CARSCREW, M8 X 20 – LEFT HAND THREAD | 54440045 | 1 |
| 18 | ASSEMBLY, OIL FILL PLUG | 49812050 | 1 |
| 19 | • PLUG, OIL FILL | NSS | 1 |
| 20 | O-RING. OIL FIL PLUG | 95024394 | 1 |
| 21 | ASSEMBLY. PISTON & PIN | 97330468 | 2 |
| 22 | • PISTON | NSS | 1 |
| 23 | • PIN. PISTON | NSS | 1 |
| 24 | • RING, LOCK | NSS | 2 |
| 25 ♦ | ASSEMBLY. VALVE | 97330484 | 1 |
| 26 | • PLATE, VALVE | NSS | 1 |
| 27 | • VALVE. DISCHARGE | NSS | 2 |
| 28 | • VALVE, INLET | NSS | 2 |
| 29 | • STOP, DISCHARGE | NSS | 2 |
| 30 | • RETAINER, INLET | NSS | 2 |
| 31 | • SCREW. HEX HEAD – M3X 16 | NSS | 4 |
| 32 | • NUT. HEX — M3 W/LOCKWASHER | NSS | 4 |
| 33 | BELTWHEEL | 97330492 | 1 |
| 34 | CAPSCREW, M6 X 14 (END COVER BOLTS) | 97330500 | 3 |
| 35 | CYLINDER | 97330625 | 1 |
| 36 | ASSEMBLY, END COVER – SERVICE | 97338073 | 1 |
| 37 | • SEAL, SHAFT | 32204521 | 1 |
| 38 | • COVER, END | NSS | 1 |
| 39 | • GASKET. END COVER | 97331227 | 1 |
| 40 | FRAME. COMPRESSOR | 97330641 | 1 |
| 41 ♦ | GASKET. VALVE PLATE | 97330658 | 1 |
| 42 ▲ | GASKET. CYLINDER | 97330666 | 1 |
| 43 ♦ | GASKET. HEAD | 54571609 | 1 |
| 44 | GLASS, SIGHT | 97330682 | 1 |
| 45 | HEAD | 97330690 | 1 |
| 46 | ASSEMBLY, VENT | 70243938 | 1 |
| 47 | FILTER, INLET | 70243399 | 1 |
| NI | • ELEMENT, FILTER | 70243712 | 1 |
Available Service Kits
| Symbol | Description |
|---|---|
| NSS | Not Sold Separately |
| ♦ | Available Individually or in Valve Kit 97338107 |
| ▲ | Available Individually or in Piston Ring Kit 97338115 |
