Looking to repair your NorthStar 75711 60 Gallon Air Compressor? Need parts for the NorthStar 75711 model?

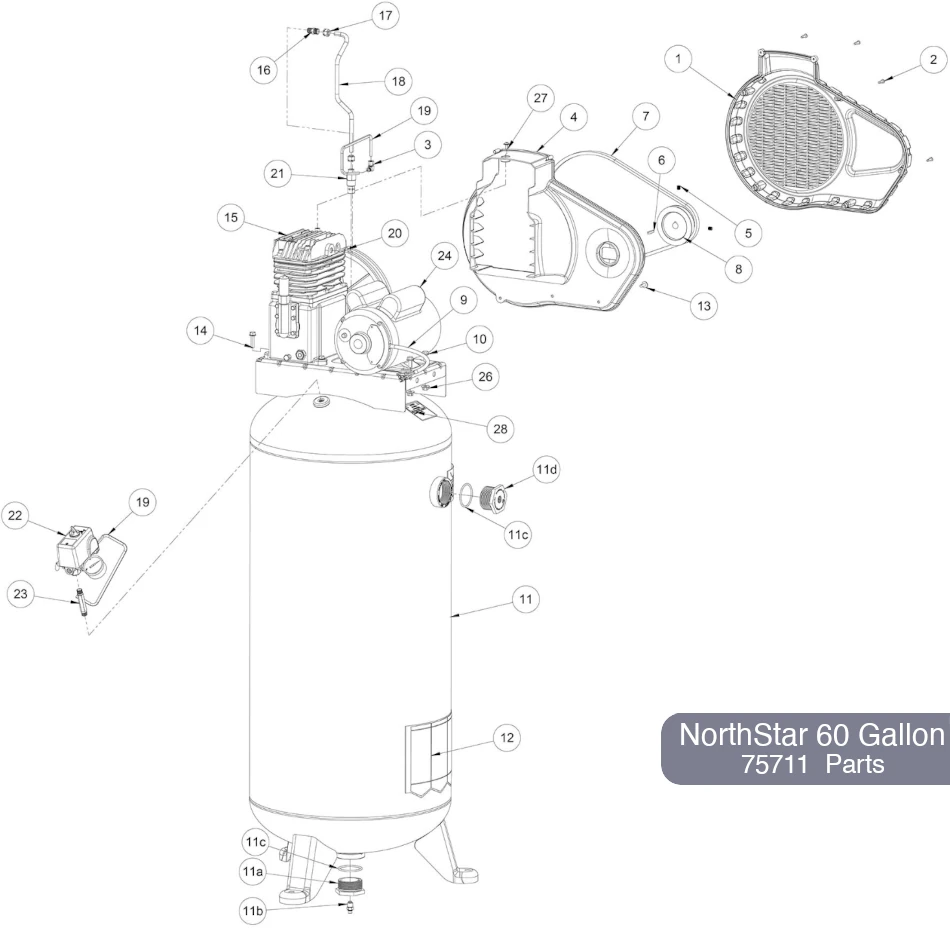

You’re in the right place! We offer a complete parts list for the NorthStar 75711 air compressor, along with an exploded view that details the exact location of each component. Whether you’re performing maintenance or a full repair, these resources will help you get the job done.
NorthStar 75711 Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Beltguard (outer) | 125-0256 | 1 |
| 2 | Plastite screw | 061-0152 | 7 |
| 3 | Elbow, 90° | 064-0003 | 1 |
| 4 | Beltguard (inner) | 125-0257 | 1 |
| 5 | Setscrew, 5/16-18 x .38 | 061-0238 | 2 |
| 6 | Key | 146-0016 | 1 |
| 7 | V-Belt, A44 | 007-0079 | 1 |
| 8 | Pulley | 006-0173 | 1 |
| 9 | Cord, interconnect | 026-0233 | 1 |
| 10 | Bolt, 3/4” whiz lock hex | 059-0474 | 4 |
| 11 | Tank assembly (includes items 11A-12) | 021-0486 | 1 |
| 11a | Bushing, 2” NPSM x 1/4” NPT | 512-0041 | 1 |
| 11b | Petcock | 072-0006 | 1 |
| 11c | O-Ring 2” | 513-0001 | 2 |
| 11d | Bushing, 2” NPSM x 3/4” NPT | 512-0043 | 1 |
| 12 | Label, warning | 098-3870 | 1 |
| 13 | Screw, 1/4-20 | 059-0475 | 3 |
| 14 | Bolt, .315-18 x 1.25” | 059-0473 | 4 |
| 15 | Pump assembly, 755H | S040-0354 | 1 |
| 16 | Connector | 068-0092 | 1 |
| 17 | Nut, 3/8” O.D. tube | 058-0007 | 2 |
| 18 | Tube, transfer | S145-0730 | 1 |
| 19 | Tube, bleeder | S145-0731 | 1 |
| 20 | Plug, 1/8” x 5/16” | 062-0001 | 1 |
| 21 | Check Valve, 1/2” x 3/8” | 031-0037 | 1 |
| 22 | Switch assembly | See Below | 1 |
| 23 | Nipple, 1/4”-18 x 2.36” | 065-0004 | 1 |
| 24 | Motor (Marathon/Regal) (See capacitor table below) | 160-0361 | 1 |
| 25 | Label, warning (not shown) | 098-2856 | 1 |
| 26 | Nut, 5/16-18 | 058-0125 | 4 |
| 27 | Screw, 1/4-20 UNC x .50 | 059-0477 | 1 |
| 28 | Label, warning | 098-3031 | 1 |
| Capacitors | ||||
| Start capacitor | Start capacitor cover | Run capacitor | Run capacitor cover | |
| Marathon/Regal Motor Capacitors | 166-0218 Marathon/Regal P/N – 81.409.1.19 | 166-0220 Marathon/Regal P/N – 178210-003 | 166-0219 Marathon/Regal P/N – 81.409.2.113 | 166-0221 Marathon/Regal P/N – 18.14.1.17 |

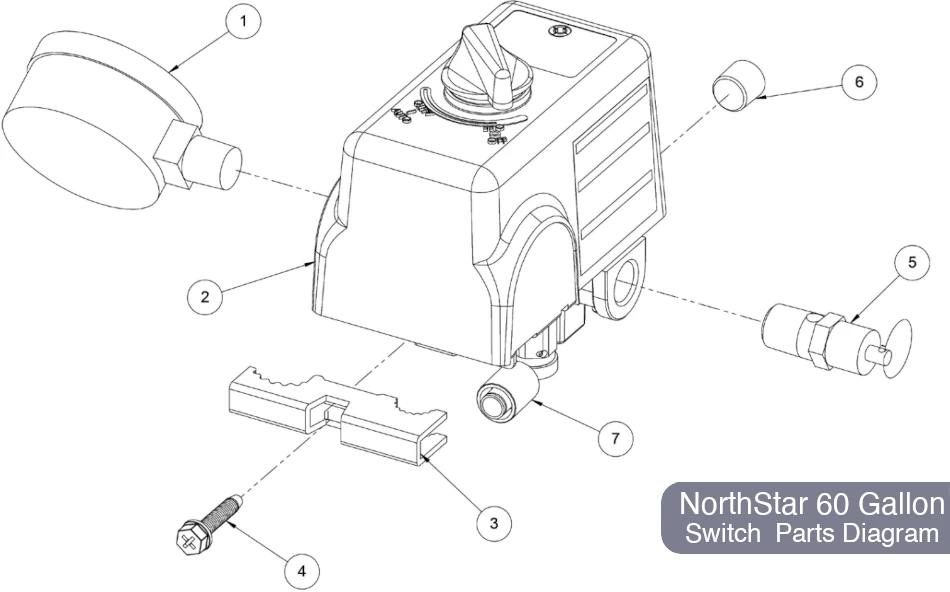

Switch Assembly Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Gauge, 300# 1/4” bottom connect | 032-0025 | 1 |
| 2 | Switch, pressure (includes items 3-4 and 7) | 034-0226 | 1 |
| 3 | Strain relief | 071-0033 | 1 |
| 4 | Screw | 061-0216 | 1 |
| 5 | Valve, ASME | 136-0005 | 1 |
| 6 | Plug, 1/4” | 062-0035 | 1 |
| 7 | Valve, bleeder | 136-0090 | 1 |
