Is your NorthStar 2 Gallon Air Compressor in need of parts? Looking for the NorthStar 2 Gal Air Compressor 106693 Parts?

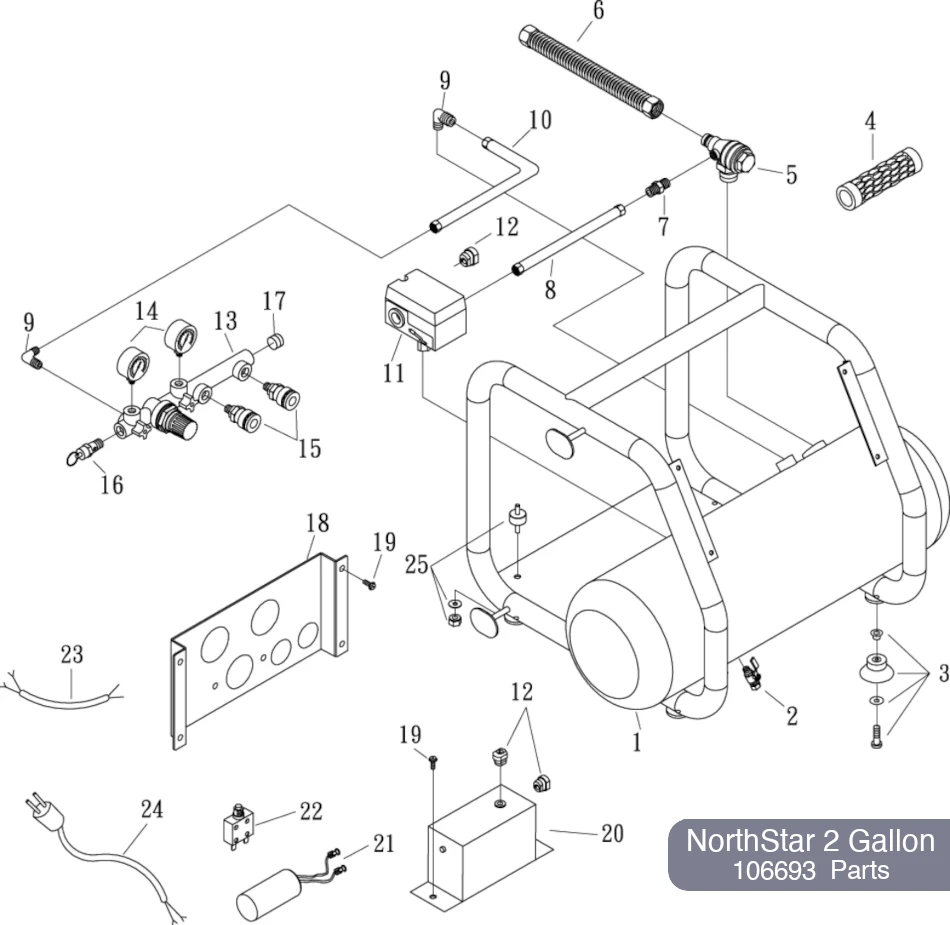

Here you can find full parts list for NorthStar 106693 Model and exploded view with the locations of each part of the air compressor.
NorthStar 106693 Parts List
| Ref No | Description | Part Numer | Qty |
|---|---|---|---|
| 1 | Air tank | 3401X106 | 1 |
| 2 | Ball valve | 2413037 | 1 |
| 3 | Rubber pad set | 3433011-A | 4 |
| 4 | Grip set | 2432110 | 1 |
| 5 | Check valve | 2414036R | 1 |
| 6 | Soft tube | 2T02-03*0220 | 1 |
| 7 | Nipple | 2N01-01T02HS | 1 |
| 8 | Unloading tube | 3B2-02*280F | 1 |
| 9 | Exhaust elbow | 2N06-02T025H | 2 |
| 10 | Tube set | 3B2-025*170N | 1 |
| 11 | Pressure switch | 2E21-CA256BP | 1 |
| 12 | Strain relief bushing | 2E04-010 | 5 |
| 13 | Regulator | 2408027 | 1 |
| 14 | Pressure gauge | 2D12-20V200I1 | 2 |
| 15 | Quick coupler | 07MSO1/4M-B | 2 |
| 16 | Pressure relief valve | 2406016A | 1 |
| 17 | Plug | 2B14-ST02E | 1 |
| 18 | Panel | 3420136 | 1 |
| 19 | Hexagon head bolt | 2B00-FM05*010WB | 8 |
| 20 | Capacitor box | 2E23-218 | 1 |
| 21 | Running capacitor | 2E27-060F2545 | 1 |
| 22 | Thermal protector | 2E25-10A | 1 |
| 23 | Cable | 2E02-1230432Y1B | 1 |
| 24 | Power cable | 2E01-039S | 1 |
| 25 | Feet block set | 3439WE06-A | 4 |

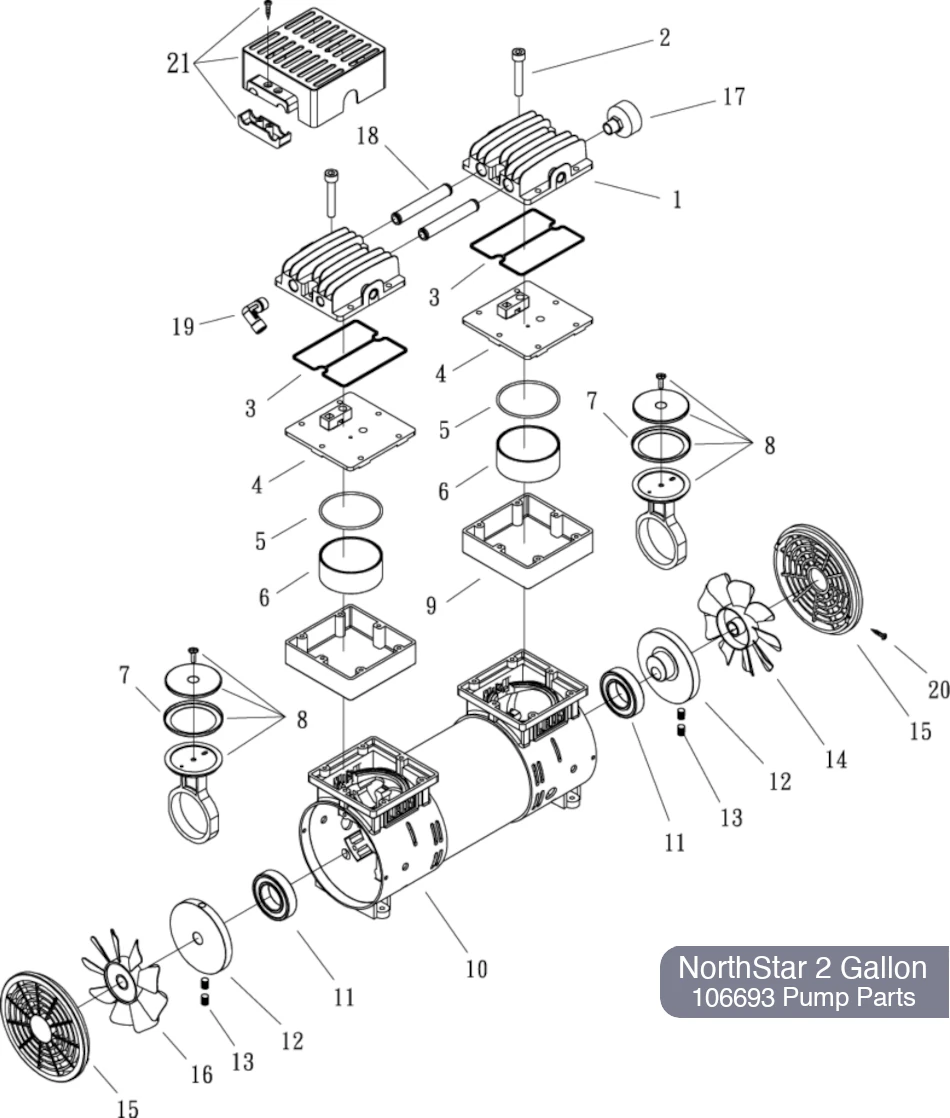

The following section provides a detailed parts list and parts diagram for the Pump Assembly of the NorthStar 2-Gallon Air Compressor (Model 106693).
NorthStar 106693 Pump Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Cylinder head | 3101-WE06 | 2 |
| 2 | Hexagon socket set bolt | 3B01-M05*050W | 12 |
| 3 | Cylinder head seal | 2G01-WE06 | 2 |
| 4 | In.& Ex. valve assembly | 3B13-WE06 | 2 |
| 5 | Valve seat seal | 2G03-WE06 | 2 |
| 6 | Cylinder | 3201-WE08 | 2 |
| 7 | Piston ring plate | 2214-WE06 | 2 |
| 8 | Piston rod set | 3B3-WE08 | 2 |
| 9 | Cylinder support | 3201H-WE08 | 2 |
| 10 | Motor set | 3B8-WE0802 | 1 |
| 11 | Bearing | 2N35-WE06ROD | 2 |
| 12 | Crankshaft & balancer | 3304-WE08 | 1 |
| 13 | Set screw | 2B07-SM08*16 | 4 |
| 14 | Cooling fan(L) | 2336-WE06L | 1 |
| 15 | Front cover | 3309-WE06 | 2 |
| 16 | Cooling fan(R) | 2336-WE06R | 1 |
| 17 | Air filter | 2140-OTS02 | 1 |
| 18 | Nipple | 2N01-WE06 | 2 |
| 19 | Exhaust elbow | 2N06-02T03H | 1 |
| 20 | Plug | 2B17-FW01*03B | 4 |
| 21 | Cover set | 3428-WE06A | 2 |
