Need a replacement part for your SS3L3 Ingersoll Rand 60 Gallon Air Compressor? Look no further! We offer a comprehensive parts list for Ingersoll Rand SS3L3 Models, making it easy to find the right Ingersoll Rand 60 Gallon Air Compressor SS3L3 Parts.

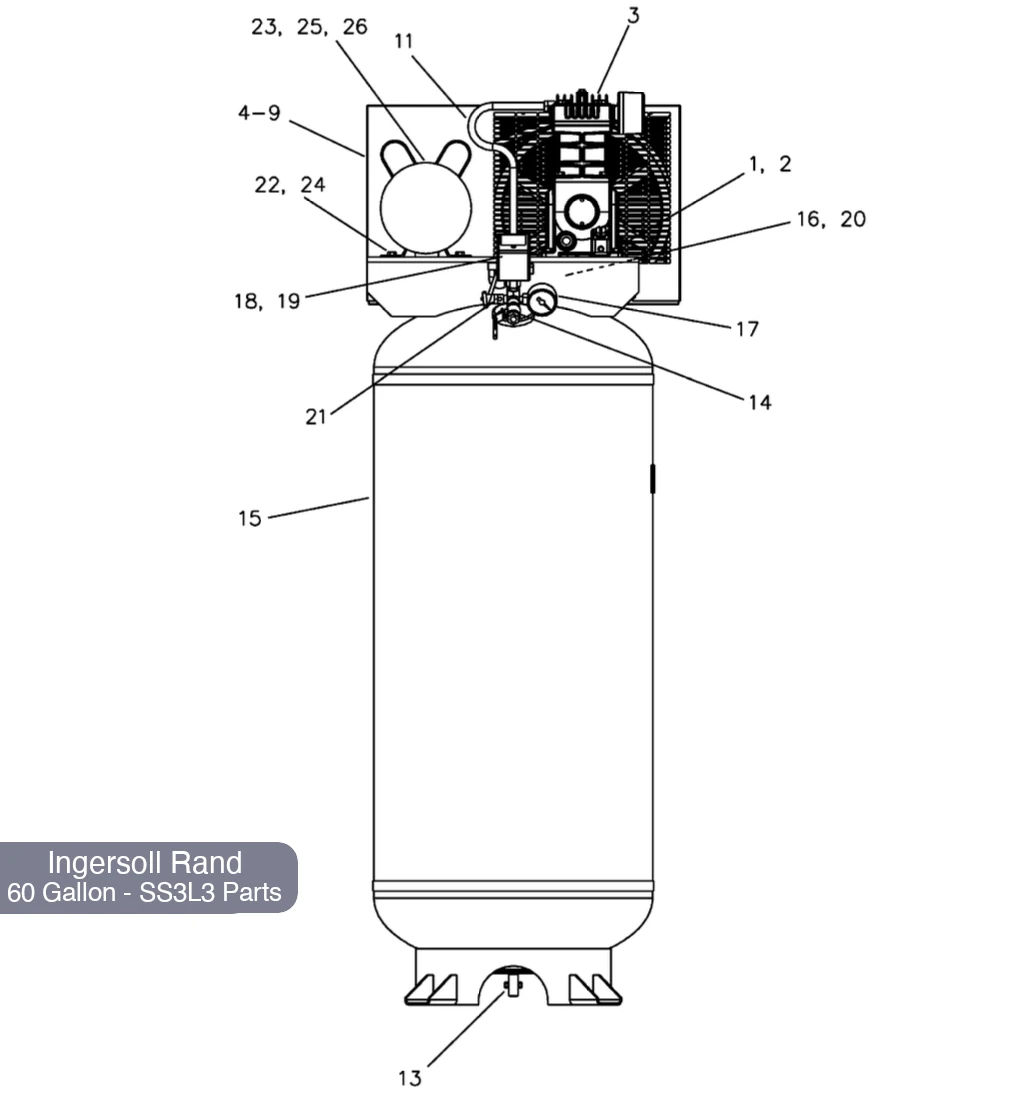

Get detailed exploded view parts diagrams that clearly showcase the location of each component within your SS3L3 air compressor.
Ingersoll Rand SS3L3 Parts List
| Ref. No. | Description | Part No | Qty |
|---|---|---|---|
| 1 | CAPSCREW, 5/16-18 X 1 – SERRATED WASHER HEAD | 32175788 | 4 |
| 2 | NUT, WHIZ-LOCK – 5/16-18 | 39128558 | 4 |
| 3 | PUMP, BARE COMPRESSOR (SEE SEPARATE PARTS LIST FOR BREAKDOWN) | 97330419 | 1 |
| BELTGUARD GROUP | |||
| 4 | SPACER, RUBBER | 56290869 | 2 |
| 5 | BRACE, BELTGUARD | 56269574 | 1 |
| 6 | SCREW, HEX — SERRATED FLANGE — M6-1.0 X 12MM | 56280159 | 1 |
| 7 | BELTGUARD, FRONT | 54459508 | 1 |
| 8 | BELTGUARD, BACK | 54459516 | 1 |
| 9 | CAPSCREW, SELF TAP — 1/4-20 X 1/2 | 97173595 | 7 |
| TUBING & FITTINGS GROUP | |||
| 10 | CONNECTOR, MALE — 1/2 X 3/8 | 95083192 | 1 |
| 11 | ASSY., DISCHARGE TUBE – 1/2 | 97336127 | 1 |
| 12 | ASSY., VENT TUBE — 1/4 | 97336135 | 1 |
| AIR RECEIVER TANK GROUP | |||
| 13 | VALVE, MANUAL DRAIN | 32027120 | 1 |
| 14 | VALVE, BALL – 1/2 F/F (SERVICE VALVE) | 32106551 | 1 |
| 15 | TANK, AIR RECEIVER | 32336042 | 1 |
| 16 | VALVE, CHECK — 1/2 NPT X 1/2 INV. FLARE | 56269590 | 1 |
| 17 | GAUGE, PRESSURE —160 PSI — 1/8 @ 9 O’CLOCK | 56269608 | 1 |
| 18 | SWITCH, PRESSURE – 135 PSI | 56289671 | 1 |
| 19 | CONNECTOR, CABLE | 97004030 | 1 |
| 20 | FITTING, MANIFOLD | 56269624 | 1 |
| 21 | VALVE, SAFETY/RELIEF — 1/8 NPT | 97171664 | 2 |
| MOTOR GROUP | |||
| 22 | CAPSCREW, 5/16 X 3/4 SERRATED WASHER HEAD | 32164634 | 4 |
| 23 | SET, SHEAVE – 1A4.2 X .625 | 32204208 | 1 |
| 24 | NUT, WHIZ-LOCK – 5/16-18 | 39128558 | 4 |
| 25 | MOTOR | 56283138 | 1 |
| 26 | BELT, V — 4L50 | 95859112 | 1 |
