Need a replacement part for your P1IU-A9 Ingersoll Rand 4 Gallon Air Compressor? Look no further! We offer a comprehensive parts list for Ingersoll Rand P1IU-A9 Models, making it easy to find the right Ingersoll Rand 4 Gallon Air Compressor P1IU-A9 Parts.
Get detailed exploded view parts diagrams that clearly showcase the location of each component within your P1IU-A9 air compressor.

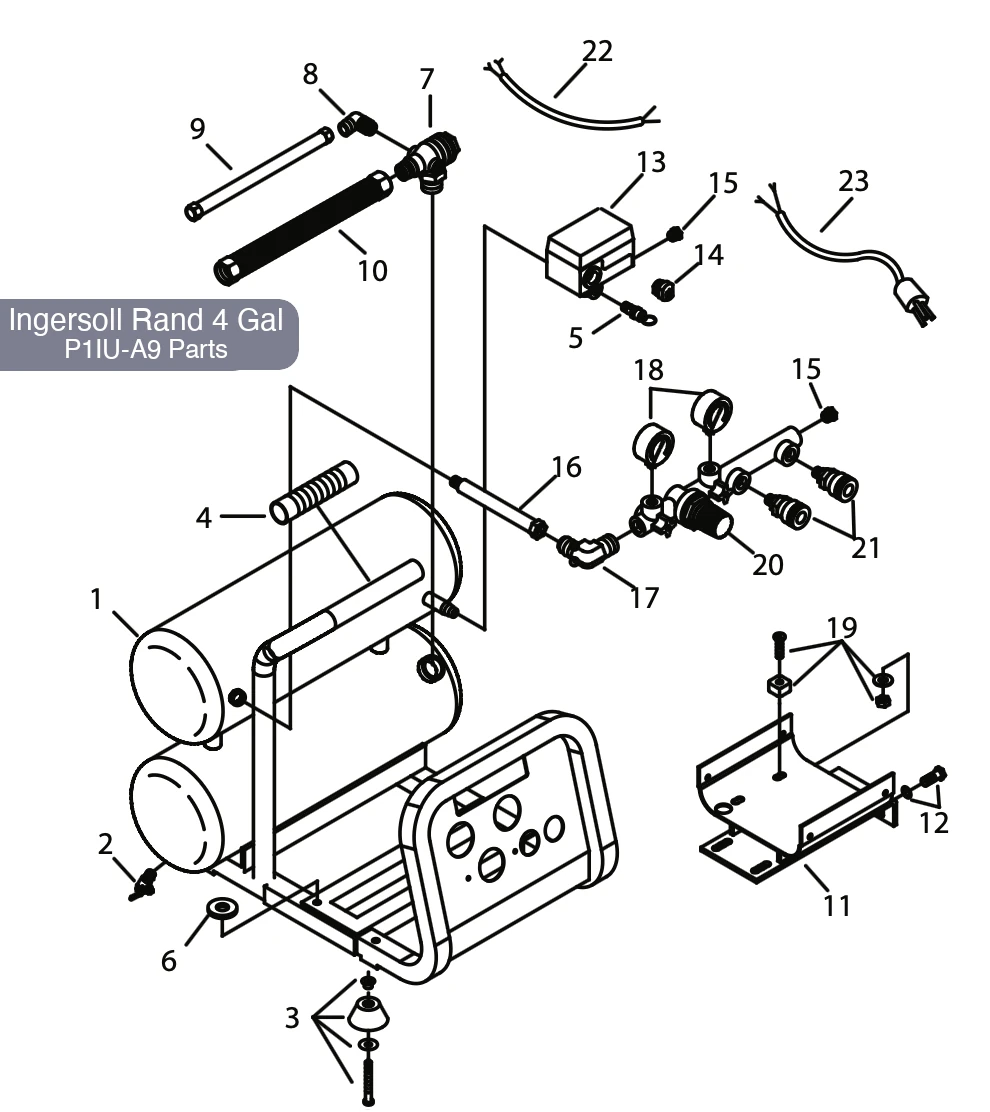

Ingersoll Rand P1IU-A9 Parts List
| Ref. No. | Description | Part No. | Qty. |
|---|---|---|---|
| 1 | TANK – AIR | 23360365 | 1 |
| 2 | VALVE – BALL | 23360373 | 1 |
| 3 | SET – RUBBER PAD | 23360381 | 4 |
| 4 | GRIP | 23360399 | 1 |
| 5 | VALVE – PRESSURE RELIEF | 23360407 | 1 |
| 6 | BODY SEAT BLOCK | 23360431 | 6 |
| 7 | VALVE – CHECK | 23360449 | 1 |
| 8 | ELBOW – UNLOADING | 23360456 | 1 |
| 9 | TUBE – UNLOADING | 23360464 | 1 |
| 10 | EXHAUST SOFT TUBE | 23360472 | 1 |
| 11 | TANK SEATING | 23360480 | 1 |
| 12 | SET – HEXAGON BOLT | 23360498 | 4 |
| 13 | SWITCH – PRESSURE | 23360506 | 1 |
| 14 | BUSHING – STRAIN RELIEF | 23360514 | 2 |
| 15 | PLUG | 23360522 | 3 |
| 16 | TUBE – SOFT | 23360530 | 1 |
| 17 | ELBOW – EXHAUST | 23360548 | 1 |
| 18 | GAUGE – PRESSURE | 23360555 | 2 |
| 19 | SET – MOTOR FOOT BOLT | 23360563 | 4 |
| 20 | REGULATOR | 23360571 | 1 |
| 21 | COUPLER – QUICK CONNECT (FEMALE) | 23360589 | 2 |
| 22 | CABLE | 23360597 | 1 |
| 23 | CABLE – POWER | 23360605 | 1 |

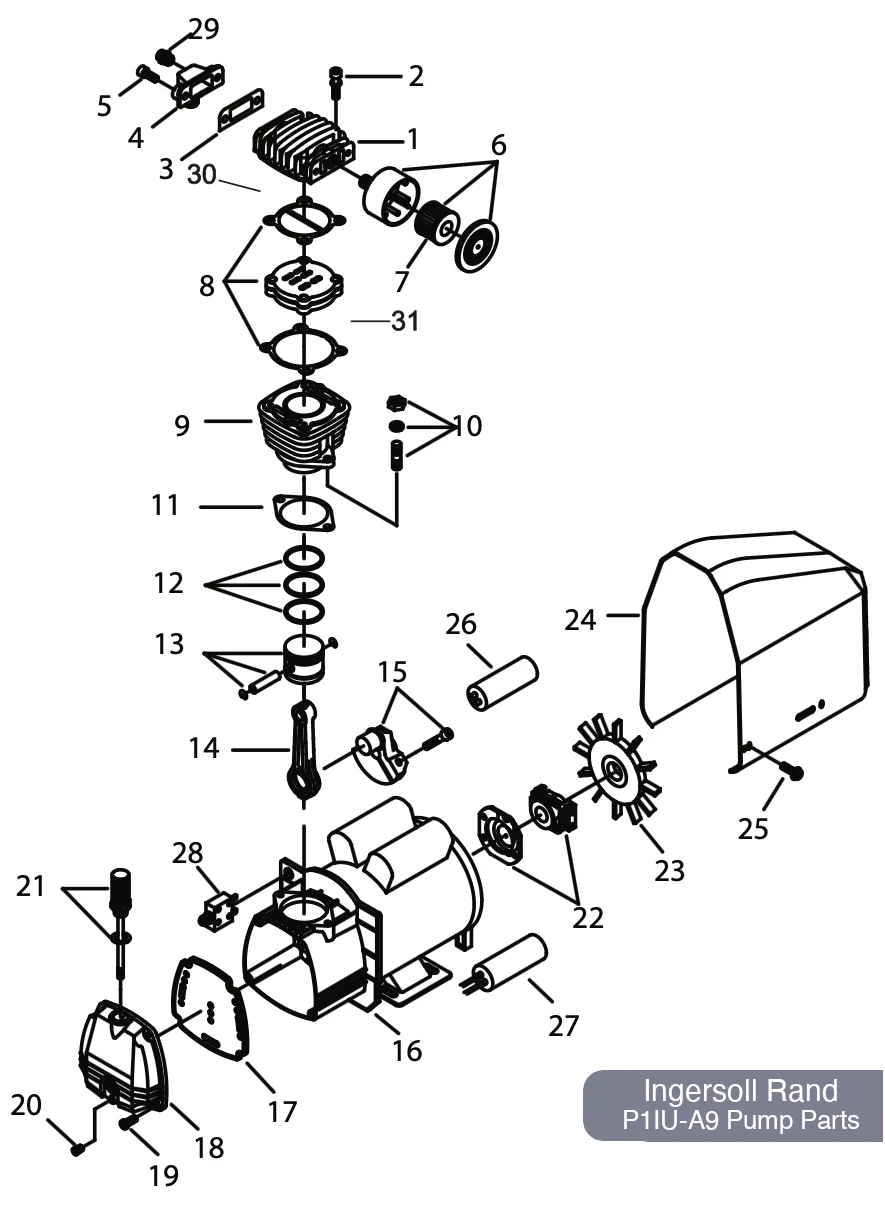

Ingersoll Rand 23369747 Pump Parts List
| Ref. No. | Description | Part No. | Qty. |
|---|---|---|---|
| 1 | HEAD – CYLINDER | 23360068 | 1 |
| 2 | SET – ALLEN BOLT | 23360084 | 4 |
| 3 | GASKET – EXHAUST ELBOW | 23360092 | 1 |
| 4 | ELBOW – EXHAUST | 23360100 | 1 |
| 5 | BOLT – ALLEN HEAD | 23360118 | 2 |
| 6 | FILTER – AIR INLET | 23360126 | 1 |
| 7 | ELEMENT – AIR INLET FILTER | 23360134 | 1 |
| 8 | ASSEMBLY – INLET & EXHAUST VALVE | 23360142 | 1 |
| 9 | CYLINDER | 23360159 | 1 |
| 10 | SET – DOUBLE HEAD SCREW | 23360167 | 2 |
| 11 | GASKET – CYLINDER | 23360175 | 1 |
| 12 | SET – PISTON RING | 23360183 | 1 |
| 13 | SET – PISTON | 23360191 | 1 |
| 14 | ROD | 23360209 | 1 |
| 15 | CRANKSHAFT & BALANCER | 23360217 | 1 |
| 16 | SET – MOTOR | 23360225 | 1 |
| 17 | GASKET – FRONT COVER | 23360233 | 1 |
| 18 | COVER – FRONT | 23360241 | 1 |
| 19 | BOLT | 23360258 | 4 |
| 20 | PLUG | 23360266 | 1 |
| 21 | SET – DIPSTICK | 23360274 | 1 |
| 22 | SET – CENTRIFUGAL SWITCH | 23360282 | 1 |
| 23 | COOLING FAN | 23360290 | 1 |
| 24 | SHROUD | 23360308 | 1 |
| 25 | BOLT | 23360316 | 6 |
| 26 | STARTING CAPACITOR | 23360324 | 1 |
| 27 | RUNNING CAPACITOR | 23360332 | 1 |
| 28 | THERMAL PROTECTOR | 23360340 | 1 |
| 29 | AUTOMATIC RELIEF VALVE | 23360357 | 1 |
| 30 | GASKET – HEAD | 23369655 | 1 |
| 31 | GASKET – VALVE ASSEMBLY/CYLINDER | 23369663 | 1 |
REPAIR KITS
Description | Kit Contents | Part No. |
|---|---|---|
| GASKET KIT | QTY. (1) EXHAUST ELBOW GASKET — PART NO. 23360092 (REF. NO. 3); QTY. (1) CYLINDER GASKET — PART NO. 23360175 (REF. NO. 11); QTY. (1) FRONT COVER GASKET — PART NO. 23360233 (REF. NO. 17); QTY. (1) HEAD GASKET — PART NO. 23369655 (REF. NO. 30); QTY. (1) VALVE ASSEMBLY/CYLINDER GASKET — PART NO. 23369663 (REF. NO. 31) | 23369739 |
| VALVE ASSEMBLY KIT | QTY. (1) INLET & EXHAUST VALVE — PART NO. 23360142 (REF. NO. 8); QTY. (1) HEAD GASKET — PART NO. 23369655 (REF. NO. 30); QTY. (1) VALVE ASSEMBLY/CYLINDER GASKET — PART NO. 23369663 (REF. NO. 31) | 23369754 |
| PISTON RING KIT | QTY. (1) CYLINDER GASKET — PART NO. 23360175 (REF. NO. 11); QTY. (1) PISTON RING SET — PART NO. 23360183 (REF. NO. 12); QTY. (2) HEAD GASKET — PART NO. 23369655 (REF. NO. 30); QTY. (2) VALVE ASSEMBLY/CYLINDER GASKET — PART NO. 23369663 (REF. NO. 31) | 23369762 |
| START-UP & MAINTENANCE KIT | QTY. (1) 0.5 LITER OF OIL — PART NO. 97338131; QTY. (1) AIR INTAKE FILTER ELEMENT — PART NO. 23360134 (REF. NO. 7) | 23369721 |
| COMPLETE PUMP | REF. NO. 1-31 | 23369747 |
