Looking for the Ingersoll Rand 120 Gallon Air Compressor 2545K10-V Parts? Do you need to repair your 2545K10-V, 2545K10-VP Ingersoll Rand 120 Gallon Air Compressor?

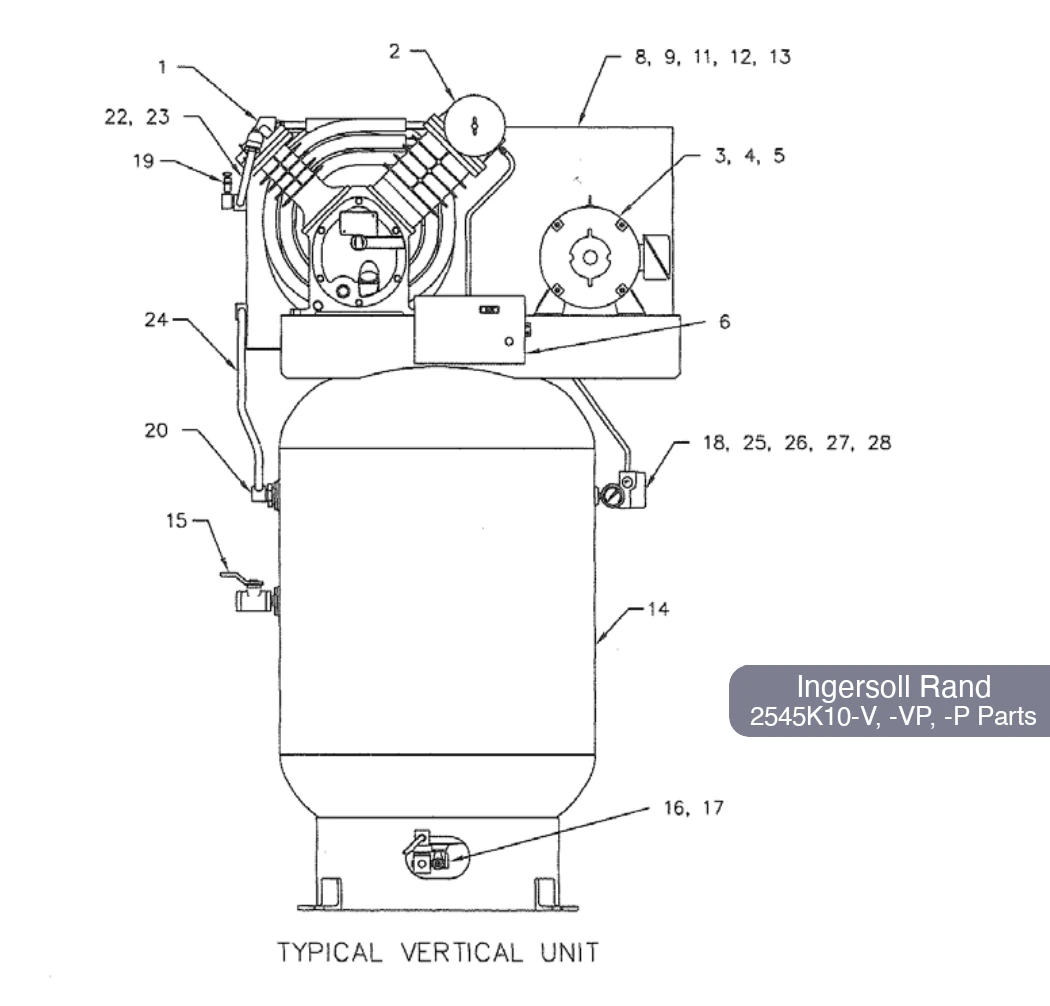

Here you can find full parts list for Ingersoll Rand 2545K10-V, 2545K10-VP and 2545K10-P Models and exploded view with the locations of each part of the air compressor.
Ingersoll Rand 2545K10-V, 2545K10-VP, 2545K10-P Parts List
| Ref No | Description | Part Number 2545K10-V | Part Number 2545K10-VP | Part Number 2545K10-P | Qty |
|---|---|---|---|---|---|
| 1 | Compressor, Bare | 32339046 | 32339046 | 32304388 | 1 |
| 2 | Filter, Inlet | 32230542 | 32230542 | 32230542 | 1 |
| 3 | Motor, Drive | 1 | |||
| • 200/3/60 | 32035933 | 32035933 | 32035933 | ||
| • 230/460-3-60 | 32036006 | 32036006 | 32036006 | ||
| • 575/3/60 | 32036014 | 32036014 | 32036014 | ||
| 4 | Sheave, Drive, 3-Phase | 54436621 | 54436621 | 54436621 | |
| 5 | V-Belt, Drive | 95100178 | 95100178 | 95100178 | 1 |
| 6 | Starter | 1 | |||
| • 200/3/60 | 23474836 | 23474836 | 23474836 | ||
| • 230/460-3-60 | 23474877 | 23474877 | 23474877 | ||
| • 230/3/60 | 23474877 | 23474877 | 23474877 | ||
| • 460/3/60 | 23474786 | 23474786 | 23474786 | ||
| • 575/3/60 | 23474794 | 23474794 | 23474794 | ||
| 8 | Back, Beltguard | 97331219 | 45468428 | 45468428 | 1 |
| 9 | Cover, Beltguard | 97331201 | 45468378 | 45468378 | 1 |
| 11 | Brace, Beltguard | 32188518 | 45469400 | 45469400 | 1 |
| 12 | Brace, Beltguard | 32188518 | 45469400 | 45469400 | 1 |
| 13 | Coil, Aftercooler | 32498057 | 32498057 | 1 | |
| 14 | Receiver | 45468139 | 45468139 | 45468139 | 1 |
| 15 | Valve, Ball – Service | 32106577 | 32106577 | 32106577 | 1 |
| 16 | Drain, Electric – 120/1 | 54579248 | 54579248 | 1 | |
| 17 | Drain, Manual | 32027120 | 1 | ||
| 18 | Valve, Relief – Receiver | 31385693 | 31385693 | 31385693 | 1 |
| 19 | Valve, Relief – Discharge | 32174286 | 32174286 | 32174286 | 1 |
| 20 | Valve, Check | 85582112 | 85582112 | 85582112 | 1 |
| 22 | Tube Assy, Discharge | 32345035 | 1 | ||
| 23 | Tube Assy, Comp to Recvr | 23080874 | 23080874 | 1 | |
| 24 | Tube Assy, ACAC to ACAC | 32498081 | 32498081 | 1 | |
| 25 | Tube Assy, Unloader | 32464449 | 32464449 | 32333064 | 1 |
| 26 | Gauge, Pressure 0-300 PSIG | 23474901 | 23474901 | 32499816 | 1 |
| 27 | Switch, Pressure | 23474570 | 23474570 | 23474588 | 1 |
| 28 | Valve, Auxiliary | 32170797 | 1 | ||
| N/I | Logo, Ingersoll Rand | 23482417 | 23482417 | 23482417 | 1 |
| N/I | Label, Safety Warning | 23482383 | 23482383 | 23482383 | 1 |
| N/I | Label, Danger Intake Air | 54653662 | 54653662 | 54653662 | 1 |
| N/I | Decal, Hot Tube | 56276652 | 56276652 | 56276652 | 1 |
| N/I | Label, Parts | 23474869 | 23474869 | 23474869 | 1 |
| N/I | Decal, Hazardous Voltage | 56272107 | 56272107 | 56272107 | 1 |
