Looking for 792363 NorthStar Pump Parts List? You’re in the right place!

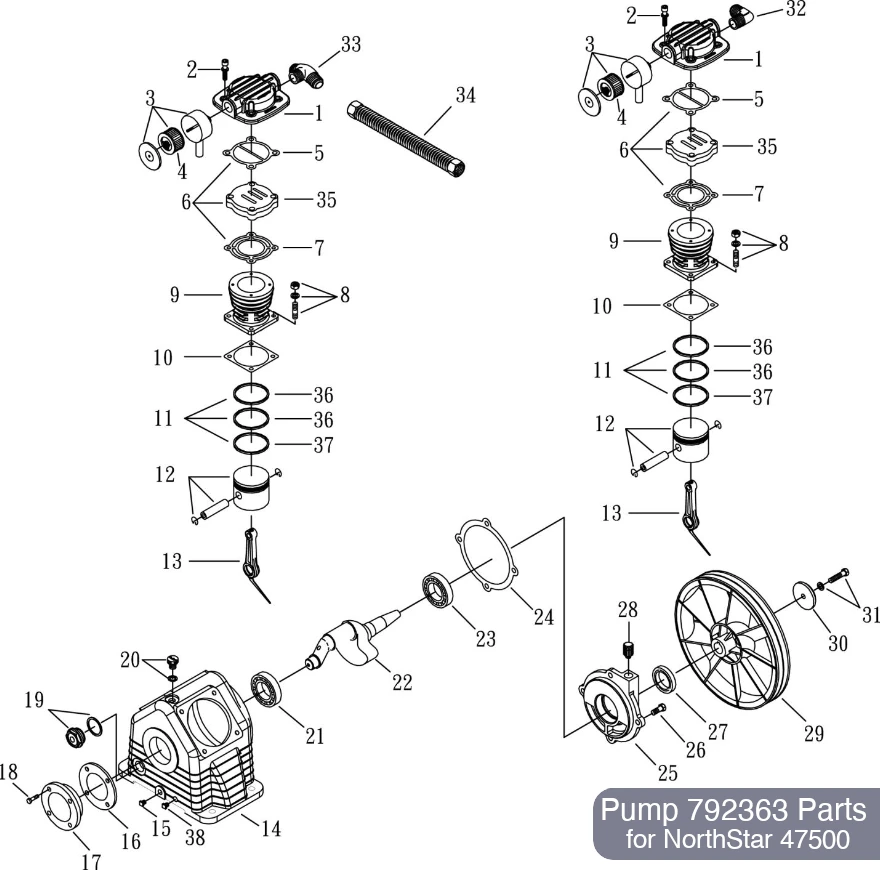

The 792363 Pump parts are specifically designed for use in the NorthStar 60-gallon air compressor 47500 model. Whether you need a comprehensive parts list for the 792363 Pump (NorthStar 60-gallon air compressors – 47500 parts) or an exploded view detailing the exact locations of each part within the pump, you’ll find everything you need right here.
NorthStar 792363 Pump Parts List
| Ref No | Description | Part No | Qty |
|---|---|---|---|
| 1 | Cylinder head | Kit #1 | 2 |
| 2 | Allen bolt set | 8 | |
| 3 | Air filter | 789354 | 2 |
| 4 | Filter element | 789355 | 2 |
| 5 | Cylinder head gasket | See part #6 Kit #2 | 2 |
| 6 | In. & ex. valve assembly | 792324 | 2 |
| 7 | Valve seat gasket | See part #6 Kit #2 | 2 |
| 8 | Stud Screw | Kit #3 | 8 |
| 9 | Cylinder | Kit #4 | 2 |
| 10 | Cylinder gasket | Kit #2 | Kit #4 | Kit #5 | 2 |
| 11 | Piston ring kit | 792325 | Kit #4 | Kit #5 | 2 |
| 12 | Piston | Kit #4 | 2 |
| 13 | Rod | 792326 | 2 |
| 14 | Crankcase | N/A | 1 |
| 15 | Oil draining plug | 788879 | 1 |
| 16 | Front cover gasket | Kit #2 | 1 |
| 17 | Front cover | N/A | 1 |
| 18 | Hex bolt | N/A | 4 |
| 19 | Oil sight gauge | 788880 | 1 |
| 20 | Oil cap | 789386 | 1 |
| 21 | Bearing | 792328 | 1 |
| 22 | Crankshaft and balancer | N/A | 1 |
| 23 | Bearing | 792329 | 1 |
| 24 | Rear bearing seat gasket | Kit #2 | 1 |
| 25 | Rear bearing seat | N/A | 1 |
| 26 | Hex bolt | N/A | 4 |
| 27 | Oil seal | Kit #2 | 1 |
| 28 | Breather | 788882 | 1 |
| 29 | Pulley | 789366 | 1 |
| 30 | Fender washer | Kit #6 | 1 |
| 31 | Hex bolt | 1 | |
| 32 | Exhaust elbow | Kit #7 | 1 |
| 33 | Exhaust pipe | 1 | |
| 34 | Discharge tube set | 1 | |
| 35 | In. & ex. valve seat | See part #6 | 2 |
| 36 | Compression ring | See part #11 | 4 |
| 37 | Oil control ring | See part #11 | 2 |
| 38 | Magnetic plug | 789384 | 1 |
| * | Wing nut, air filter | 789524 | 2 |
Kit #1 Cylinder Head and Bolt Kit – #789336
| Ref No | Description | Qty |
|---|---|---|
| 1 | Cylinder head | 1 |
| 2 | Allen bolt set | 4 |
Kit #2 Gasket Kit – #789339
| Ref No | Description | Qty |
|---|---|---|
| 5 | Cylinder head gasket | 2 |
| 7 | Valve seat gasket | 2 |
| 10 | Cylinder gasket | 2 |
| 16 | Front cover gasket | 1 |
| 24 | Rear bearing seat gasket | 1 |
| 27 | Oil seal | 1 |
Kit # 3 Screw Kit – #789358
| Ref No | Description | Qty |
|---|---|---|
| 8 | Stud Screw | 4 |
Kit # 4 Cylinder and Piston Kit – #789342
| Ref No | Description | Qty |
|---|---|---|
| 9 | Cylinder | 1 |
| 10 | Cylinder gasket | 1 |
| 11 | Piston ring kit | 1 |
| 12 | Piston | 1 |
Kit # 5 Piston Ring Kit – #789359
| Ref No | Description | Qty |
|---|---|---|
| 10 | Cylinder gasket | 1 |
| 11 | Piston ring kit | 1 |
Kit # 6 Washer and Bolt – #789367
| Ref No | Description | Qty |
|---|---|---|
| 30 | Fender washer | 1 |
| 31 | Hex bolt | 1 |
Kit # 7 Exhaust Fitting and Tube Kit – #792347
| Ref No | Description | Qty |
|---|---|---|
| 32 | Exhaust elbow | 1 |
| 33 | Exhaust pipe | 1 |
| 34 | Discharge tube set | 1 |
