Do you need to repair 53009 NorthStar 8 Gal Air Compressor ? Looking for the NorthStar 8 Gallon Air Compressor 53009 Parts? Then You have come to the right place.

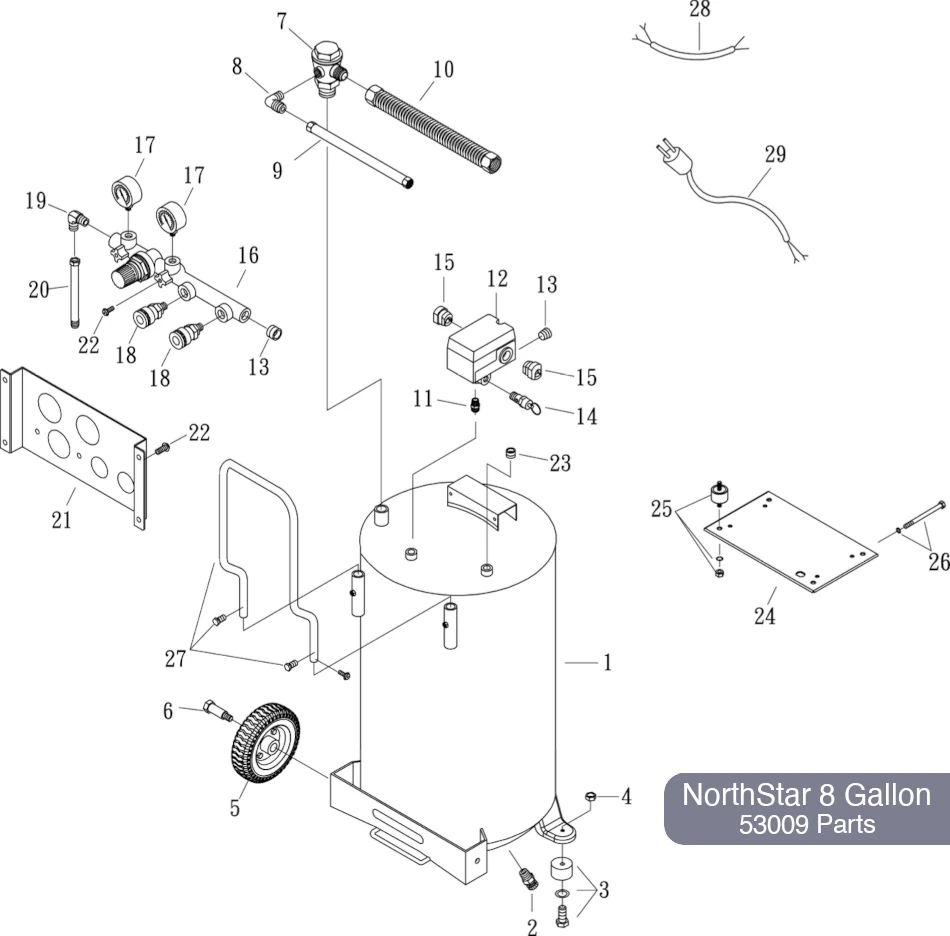

Here you can find full parts list for NorthStar 53009 Model and exploded view with the locations of each part of the air compressor.
NorthStar 53009 Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Air tank | 3401A213B | 1 |
| 2 | Drain valve | 2405012 | 1 |
| 3 | Rubber pad set | 3433013-A | 2 |
| 4 | Hexagon head nut | 2B20-FM08 | 2 |
| 5 | Tank wheel | 2402042B | 2 |
| 6 | Tank wheel bolt | 2418005 | 2 |
| 7 | Check valve | 2414025 | 1 |
| 8 | Unloading elbow | 2N06-01T02H | 1 |
| 9 | Unloading tube set | 3B2-02*170F | 1 |
| 10 | Exhaust soft tube | 2T02-04*0400 | 1 |
| 11 | Nipple | 2N01-001 | 1 |
| 12 | Pressure switch | 2E21-AA256BP | 1 |
| 13 | Plug | 2B14-ST02E | 3 |
| 14 | Pressure relief valve | 2406021A | 1 |
| 15 | Strain relief bushing | 2E04-010 | 2 |
| 16 | Regulator | 2408027 | 1 |
| 17 | Pressure gauge | 2D12-20V200I1 | 2 |
| 18 | Quick coupler | 07MSO1/4M-B | 2 |
| 19 | Exhaust elbow | 2N06-02T02F | 1 |
| 20 | Soft tube | 2T06-025 | 1 |
| 21 | Panel | 3420114 | 1 |
| 22 | Hexagon head bolt | 2B00-FM05*010WB | 6 |
| 23 | Plug | 2B14-ST01E | 1 |
| 24 | Base | 3403173 | 1 |
| 25 | Vibration absorber set | 3439042-A | 4 |
| 26 | Hexagon bolt set | 3B01-M06*075V | 2 |
| 27 | Handle Set | 3432081A-A | 1 |
| 28 | Cable | 2E02-2030512Y1B | 1 |
| 29 | Power cable | 2E01-012 | 1 |

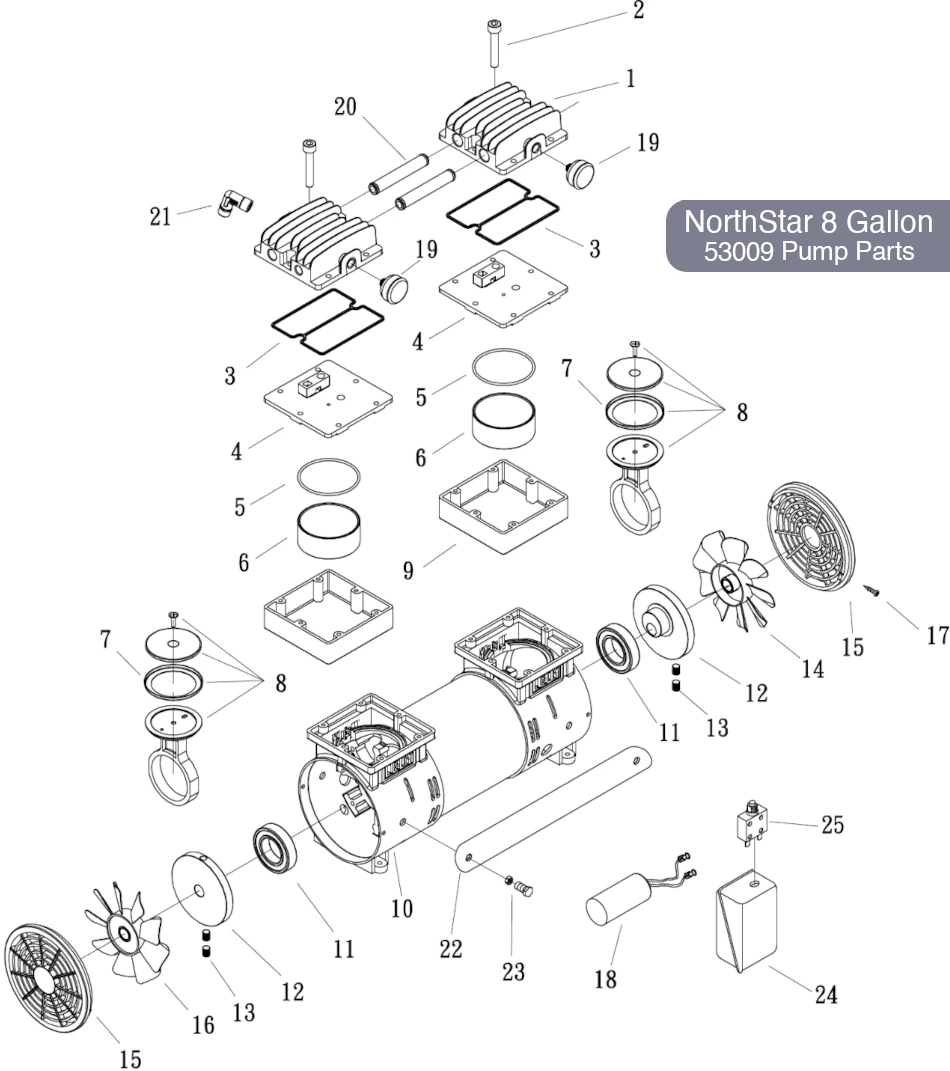

The following section provides a detailed parts list and parts diagram for the Pump Assembly of the NorthStar 8-Gallon Air Compressor (Model 53009).
NorthStar 53009 Pump Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Cylinder head | 3101-WE11 | 2 |
| 2 | Hexagon socket set bolt | 2B01-M06*065 | 12 |
| 3 | Cylinder head seal | 2G01-WE11 | 2 |
| 4 | In. & ex. valve assembly | 3B13-WE11 | 2 |
| 5 | Valve seat seal | 2G03-WE11 | 2 |
| 6 | Cylinder | 3201-WE11 | 2 |
| 7 | Piston ring plate | 2214-WE06 | 2 |
| 8 | Piston rod set | 3B3-WE11 | 2 |
| 9 | Cylinder support | 3201H-WE11 | 2 |
| 10 | Motor set | 3B8-WE1100 | 1 |
| 11 | Bearing | 2N35-WE11ROD | 2 |
| 12 | Crankshaft & balancer | 3304-WE11 | 1 |
| 13 | Set screw | 2B07-SM08*16 | 4 |
| 14 | Cooling fan (L) | 2336-WE11L | 1 |
| 15 | Front cover | 3309-WE11 | 2 |
| 16 | Cooling fan (R) | 2336-WE11R | 1 |
| 17 | Screw | 2B17-FW01*03B | 4 |
| 18 | Running capacitor | 2E27-090F2545 | 1 |
| 19 | Air filter | 2140036 | 2 |
| 20 | Nipple | 2N01-WE11 | 2 |
| 21 | Exhaust elbow | 2N06-04T04H | 1 |
| 22 | Capacitor seat | 3417025 | 1 |
| 23 | Hexagon bolt set | 3B00-FM10*016VW | 2 |
| 24 | Capacitor box | 2E23-216 | 1 |
| 25 | Thermal protector | 2E25-15A | 1 |
