Is your 47501 NorthStar 60 Gallon Air Compressor in need of repair? Look no further! We offer a comprehensive parts list for NorthStar 47501 Model, making it easy to find the right NorthStar 20 Gallon Air Compressor 47501 Parts.

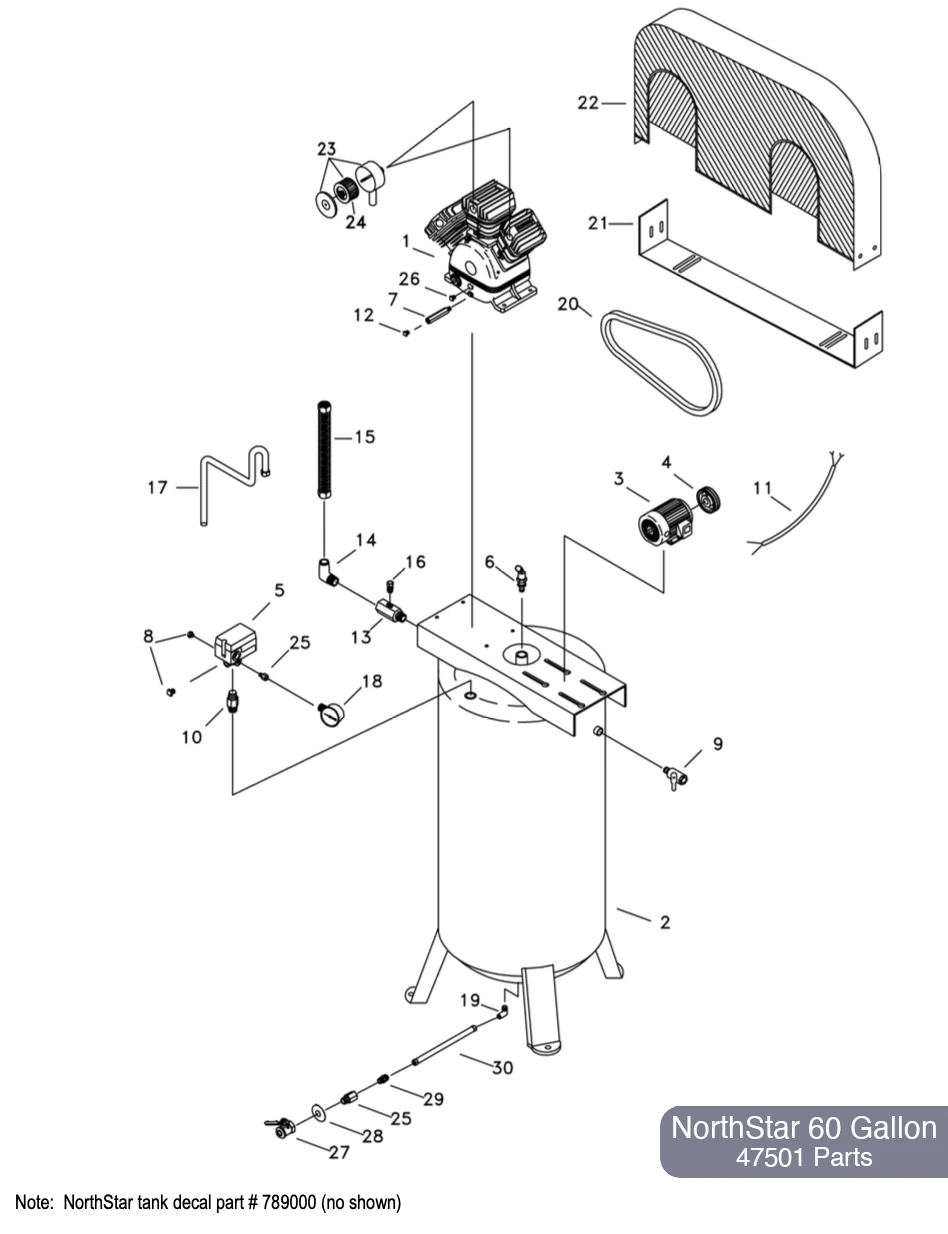

Get detailed exploded view parts diagrams that clearly showcase the location of each component within your 47501 air compressor
NorthStar 47501 Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Pump * | 792373 | 1 |
| 2 | Tank | N/A | 1 |
| 3 | Motor ** | 792374 | 1 |
| 4 | Pulley | 792375 | 1 |
| 5 | Pressure Switch | Kit #1 | 1 |
| 6 | Pressure Relief Valve | 792366 | 1 |
| 7 | Oil Drain Plug Extender | 792340 | 1 |
| 8 | Plug | Kit #1 | 2 |
| 9 | Service Valve | 792369 | 1 |
| 10 | Nipple | Kit #1 | 1 |
| 11 | Electric Cable | 792367 | 1 |
| 12 | Oil Drain Plug | See Pump | 1 |
| 13 | Check Valve | Kit #2 | 1 |
| 14 | Elbow | Kit #3 | 1 |
| 15 | Discharge Tube | 1 | |
| 16 | Nipple | Kit #2 | 1 |
| 17 | Tube w/Ferrules & Nuts | Kit # 3 | 1 |
| 18 | Pressure Gauge | Kit # 1. | 1 |
| 19 | Tube Fitting | Kit # 4 | 1 |
| 20 | Belt A48 | 792376 | 1 |
| 21 | Belt Guard Bottom Cover *** | 792372 | 1 |
| 22 | Belt Guard Assembly | 792371 | 1 |
| 23 | Air Filter Housing | See Pump | 2 |
| 24 | Filter Element | See Pump | 2 |
| 25 | Adaptor | Kit # 1, Kit # 5 | 2 |
| 26 | Magnetic Drain Plug | See Pump | 1 |
| 27 | Water Drain Valve | Kit # 5 | 1 |
| 28 | Washer | 1 | |
| 29 | Straight Tube Fitting | Kit # 4 | 1 |
| 30 | Water Drain Tube | Kit # 4 | 1 |
Kit #1. Pressure Switch Kit – # 792377
| Ref No | Description | Qty |
|---|---|---|
| 5 | Pressure Switch | 1 |
| 8 | Plug | 2 |
| 10 | Nipple | 1 |
| 18 | Pressure Gauge | 1 |
| 25 | Adaptor | 1 |
Kit #2. Check Valve Kit – # 792378
| Ref No | Description | Qty |
|---|---|---|
| 13 | Check Valve | 1 |
| 16 | Nipple | 1 |
Kit #3. Tube Kit – # 792382
| Ref No | Description | Qty |
|---|---|---|
| 14 | Elbow | 1 |
| 15 | Discharge Tube | 1 |
| 17 | Tube w/Ferrules & Nuts | 1 |
Kit #4. Drain Tube Kit – # 792380
| Ref No | Description | Qty |
|---|---|---|
| 19 | Tube Fitting | 1 |
| 29 | Straight Tube Fitting | 1 |
| 30 | Water Drain Tube | 1 |
Kit #5. Drain Valve Kit – # 792381
| Ref No | Description | Qty |
|---|---|---|
| 25 | Adaptor | 1 |
| 27 | Water Drain Valve | 1 |
| 28 | Washer | 1 |
| Description | Qty |
|---|---|
| *Fastener Kit for Pump – # 792384 | |
| Bolt 5/16 x 1 -1/4 T18/in Grade 5 | 4 |
| Nut T18/in flange lock | 4 |
| **Fastener Kit for Motor – # 792385 | |
| Bolt 5/16 x 1 T18/in Carriage Grade 5 | 4 |
| Nut T18/in flange lock | 4 |
| ***Fastener Kit for Belt Guard – # 792386 | |
| Bolt 5/16 x 1T18/in Grade 2 | 7 |
| Nut T18/in flange lock | 3 |
| Fender washer 5/16 | 3 |
| Washer 5/16 SAE | 4 |
