Need a replacement part for your NorthStar 106694 20 Gallon Air Compressor? We offer a comprehensive parts list for NorthStar 106694 Model, making it easy to find the right NorthStar 20 Gallon Air Compressor 106694 Parts.

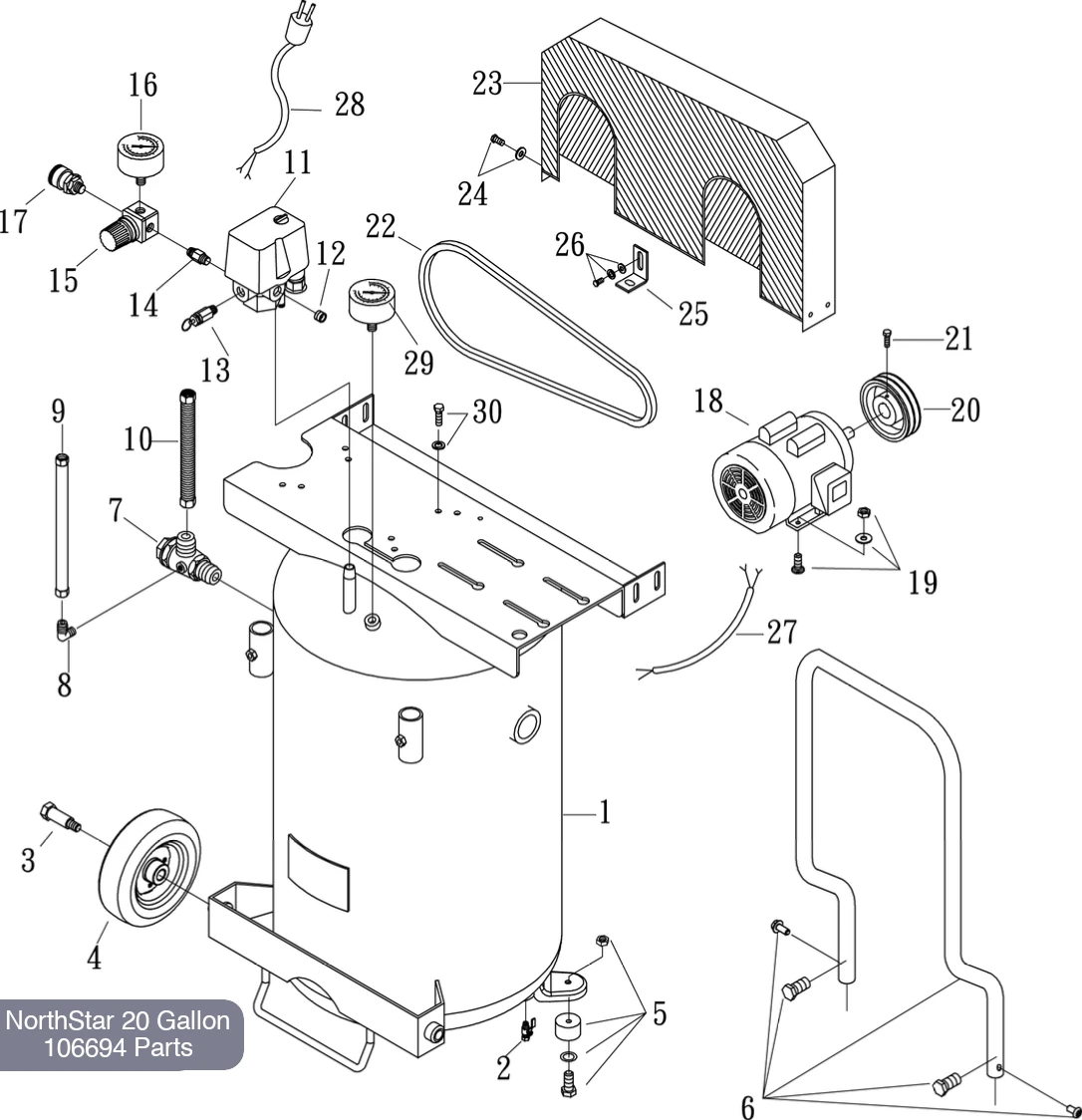

Get detailed exploded view parts diagrams that clearly showcase the location of each component within your NorthStar 106694 air compressor.
NorthStar 106694 Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Air tank | 3401A245SR | 1 |
| 2 | Ball valve | 2413037 | 1 |
| 3 | Tank wheel bolt | 2418005 | 2 |
| 4 | Tank wheel | 2402032B | 2 |
| 5 | Rubber pad set | 3433013-AN | 2 |
| 6 | Grip set | 3432081A-A | 1 |
| 7 | Check valve | 2414025T | 1 |
| 8 | Unloading elbow | 2N06-01T02H | 1 |
| 9 | Unloading tube | 3B2-02*420F | 1 |
| 10 | Exhaust tube set | 3B2-04*420 | 1 |
| 11 | Pressure switch | 2E21-BC356BEX | 1 |
| 12 | Plug | 2B14-ST02E | 1 |
| 13 | Pressure relief valve | 2406024 | 1 |
| 14 | Nipple | 2N01-02N02N045 | 1 |
| 15 | Regulator | 2408008LNX | 1 |
| 16 | Pressure gauge | 2D12-20D200I1 | 1 |
| 17 | Quick coupler | 07MSO1/4M-B | 1 |
| 18 | Motor | 2M02-A7450QN | 1 |
| 19 | Motor feet set bolt | 3B08-FM08*20-M | 4 |
| 20 | Motor pulley | 3PMF-032A1W0515 | 1 |
| 21 | Bolt | 2B07-SM08*16 | 2 |
| 22 | V-belt | 2N31-A43 | 1 |
| 23 | Belt guard | 3426094 | 1 |
| 24 | Hexagon bolt set | 3B00-FM08*015W | 4 |
| 25 | Bracket | 3427093 | 1 |
| 26 | Hexagon bolt set | 3B00-SM06*015VW | 2 |
| 27 | Cable | 2E02-2030502Y2T | 1 |
| 28 | Power cable | 2E01-012W | 1 |
| 29 | Pressure gauge | 2D12-20D200I | 1 |
| 30 | Hexagon bolt set | 3B00-FM08*025V | 4 |

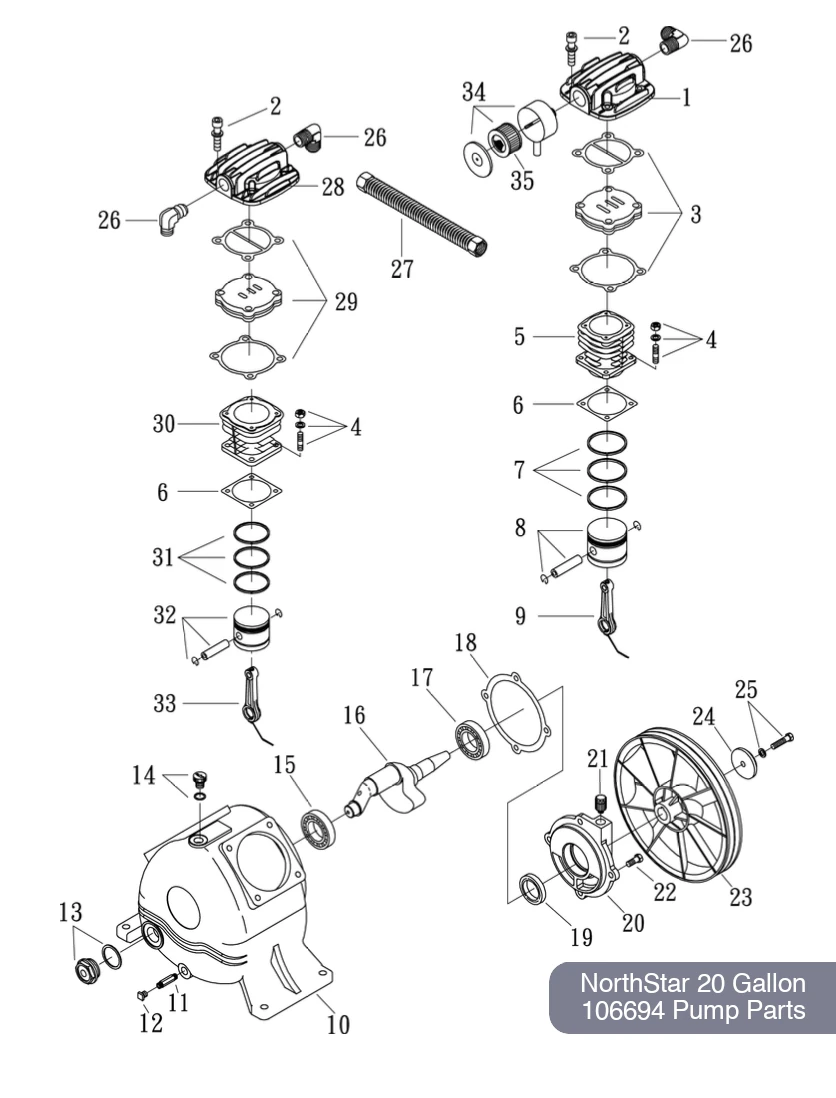

The following section provides a detailed parts list and parts diagram for the Pump Assembly of the NorthStar 20-Gallon Air Compressor (Model 106694).
NorthStar 106694 Pump Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Cylinder head | 3101103 | 1 |
| 2 | Allen bolt set | 3B01-M06*035V | 8 |
| 3 | In. & Ex. Valve assembly | 3B13-K5070C | 8 |
| 4 | Double head screw set | 3B11-001-A | 1 |
| 5 | Cylinder | 3201123 | 8 |
| 6 | Cylinder gasket | 2G04-003 | 1 |
| 7 | Piston ring set | 3B32-70N3 | 2 |
| 8 | Piston set | 3B31-70N | 1 |
| 9 | Rod set | 3B33-H20601 | 1 |
| 10 | Crankcase | 3301125 | 1 |
| 11 | Oil draining tube | 2305008 | 1 |
| 12 | Oil draining plug | 2N33-002 | 1 |
| 13 | Oil sight gauge set | 2303012A | 1 |
| 14 | Oil filling plug set | 2319003A | 1 |
| 15 | Bearing | 2N35-6204 | 1 |
| 16 | Crankshaft & balancer | 3304038 | 1 |
| 17 | Bearing | 2N35-6205Z | 1 |
| 18 | Rear bearing seat gasket | 2G06-008 | 1 |
| 19 | Oil seal | 2N50-TC24*47*07 | 1 |
| 20 | Rear bearing seat | 3311034 | 1 |
| 21 | Breathing cover | 2321008 | 1 |
| 22 | Hexagon bolt | 2B00-SM08*020 | 4 |
| 23 | Pulley | 3PBF-105A124 | 1 |
| 24 | Plate washer | 2B30-08*35*35 | 1 |
| 25 | Hexagon bolt set | 3B00-SM08*035AV | 1 |
| 26 | Exhaust elbow | 2N06-04T04HSS | 3 |
| 27 | Exhaust tube set | 3B2-04*520 | 1 |
| 28 | Cylinder head | 3101100 | 1 |
| 29 | In. & Ex. Valve assembly | 3B13-K4251C | 1 |
| 30 | Cylinder | 3201087 | 1 |
| 31 | Piston ring set | 3B32-42N | 1 |
| 32 | Piston set | 3B31-T42HN | 1 |
| 33 | Rod set | 3B33-GT27 | 1 |
| 34 | Air filter set | 2140038 | 1 |
| 35 | Filter element | 2142021 | 1 |
